SATO Label Printing

SATO Industrial and Desktop Label Printing

Industrial, desktop and mobile thermal label printers from 2 inches to 10.5 inches wide, with matching ribbons, label stock and printheads. SATO printers are configured at manufacture, so the part number carries the specification.

Industrial Duty203 to 609 dpiRFID Encoding2" to 10.5" WidthsBuilt to Order
Explore SATO PrintersRequest a Quote
Built to Order Resolution, radio, dispenser, rewinder and real-time clock are all specified at manufacture on the CL range, which is why the part number matters more than the model name.
203 to 609 dpi The CL4NX Plus reaches 609 dpi, which suits very small 2D codes and fine text that standard 203 dpi printers cannot resolve cleanly.

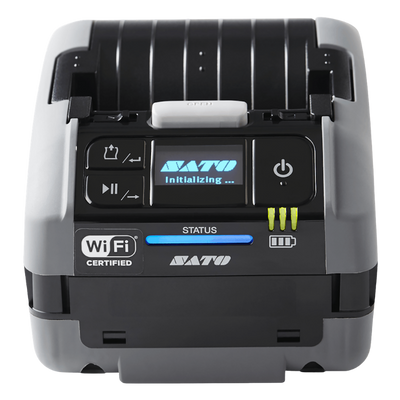

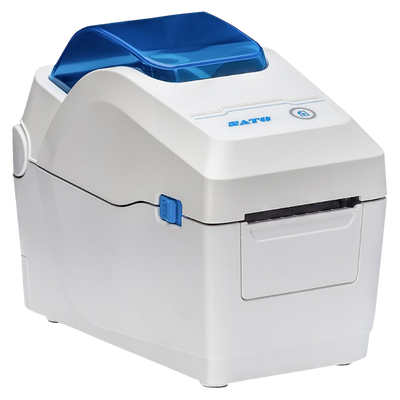

2" to 10.5" From the 2-inch WS2 and PW2NX up to the SG112-ex at 10.5 inches for wide-format compliance and pallet labelling.
SATO Industrial and Desktop Label Printing
Browse the Catalog

SATO Hardware In Stock

Filter by category to see what we hold. All SATO covers printers, ribbons, labels, printheads and accessories. The grid is a preview, so use the arrow beside any category to see the full collection.

No products found.

Select another filter or return to All Hardware.

SATO Printer Questions

Choosing by duty and width, why part numbers matter, resolution, ribbon pairing and wear parts.

Which SATO printer should I choose?

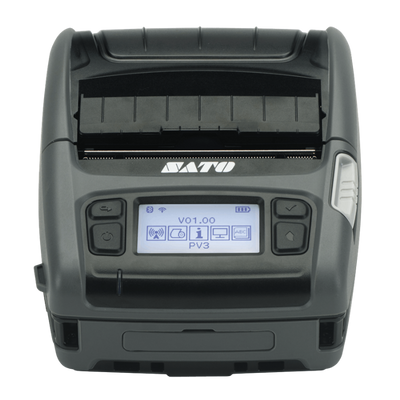

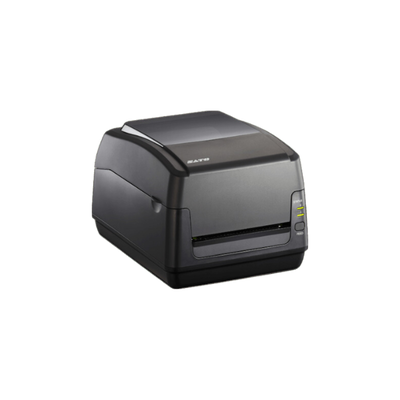

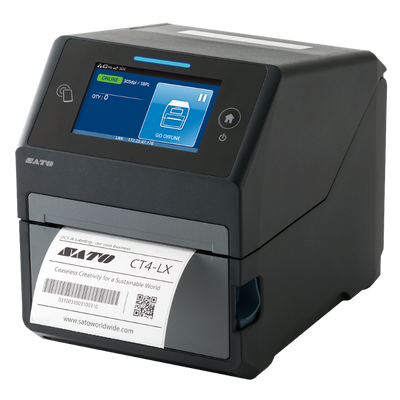

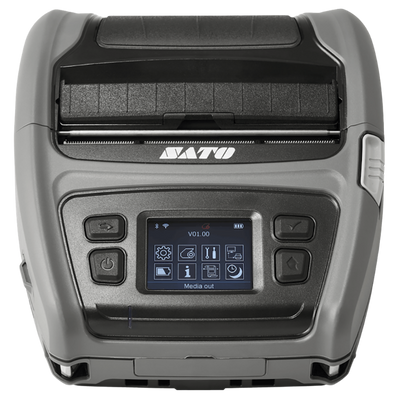

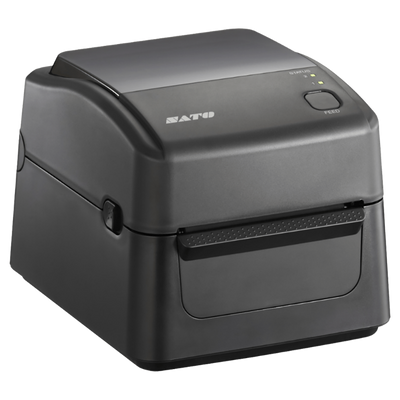

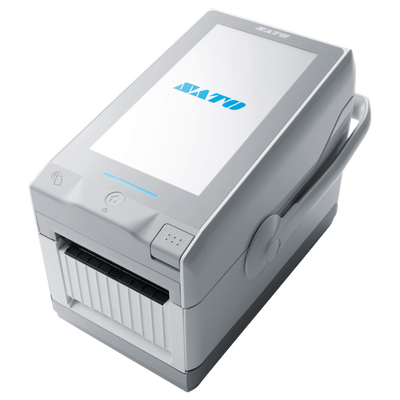

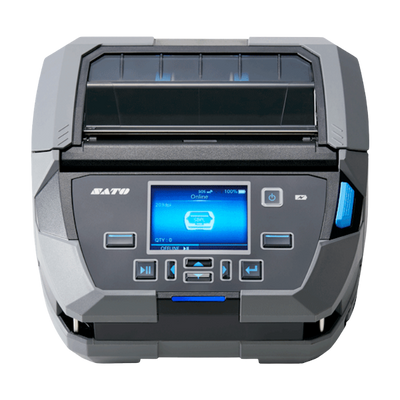

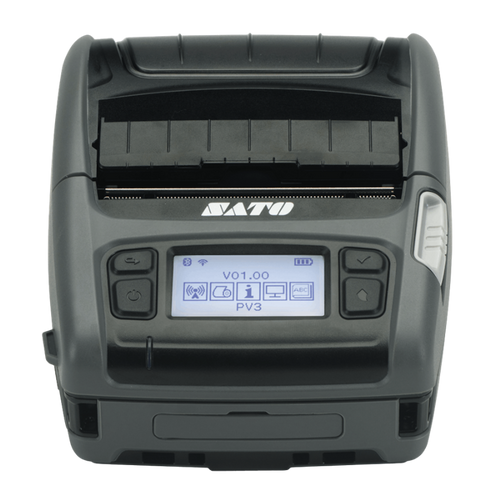

Start with duty. The CL4NX Plus and CL6NX Plus are industrial units built for continuous output through a shift. The CT4-LX, FX3-LX, WS4 and WS2 are desktop printers for batch work at a bench. The PW and PV ranges are mobile, for printing where the work happens.

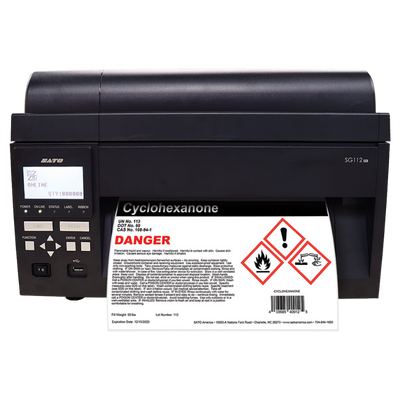

Then choose print width. Most applications are served by 4 inches, but the SG112-ex reaches 10.5 inches for wide-format compliance and pallet labels.

Browse industrial, desktop and mobile printers.

Why do SATO part numbers matter so much?

Because the CL range is configured at manufacture rather than adapted afterwards. Resolution, WLAN, real-time clock, dispenser, rewinder and cutter are all fixed when the printer is built.

Two printers both called CL4NX Plus can differ substantially. WWCLP1001 and WWCLP1201-WAR are the same family and very different machines.

Send us the full part number when replacing a unit, or tell us the requirement and we will specify it correctly the first time.

What resolution do I need?

203 dpi handles standard barcodes and shipping labels, and is the right choice for most work. 305 dpi suits smaller text and denser codes. 609 dpi, available on the CL4NX Plus, is for very small 2D codes and fine detail such as electronics and laboratory marking.

Higher resolution is not automatically better. It prints more slowly, and the printhead costs more to replace, so specify it only where the label genuinely needs it.

What is a dispenser and rewinder, and do I need one?

A dispenser peels each label from its liner as it prints, so the operator takes a ready-to-apply label rather than peeling it by hand. A rewinder collects the spent liner, which keeps the work area clear.

Together they matter in any application where someone applies labels continuously, because peeling by hand is the slow step.

Both are specified at order on the CL range and cannot be retrofitted, so decide before purchase.

Which ribbon goes with which label?

Wax pairs with paper. Wax/resin suits coated paper and light synthetic use. Resin is required for polyester and polypropylene.

Getting this wrong is the most common thermal transfer mistake. A wax ribbon on a polyester label prints perfectly and then rubs away under a fingernail, because wax cannot bond to a synthetic surface.

Browse SATO ribbons and labels.

How often do printheads need replacing?

The printhead is a wear part rather than a fault. Every label that passes under it causes a small amount of abrasion, so on an industrial printer running at full duty it is a running cost alongside labels and ribbon.

Poor quality media, running darkness higher than necessary and mismatched ribbons all shorten its life. Cleaning the head regularly extends it considerably.

Browse SATO printheads.

Hardware Selection Support

Not sure which model is right?

Send us what you are trying to do and we will come back with a specific recommendation rather than a catalogue. If you are replacing equipment, a model number or a photo of the existing setup is usually enough to work from.

  • Solutions experts on staff to answer your hardware questions
  • 30 day return policy, excluding consumables
  • In-stock items ship same day when ordered by 4:00pm Eastern
  • Volume and multi-location pricing reviewed on request
