Zebra ZD411 2-Inch Direct Thermal Desktop Label Printer, USB, Bluetooth | ZD4A022-D01M00EZ
Zebra ZD411 2-Inch Direct Thermal Desktop Label Printer, USB, Bluetooth | ZD4A022-D01M00EZ
SKU:ZD4A022-D01M00EZ

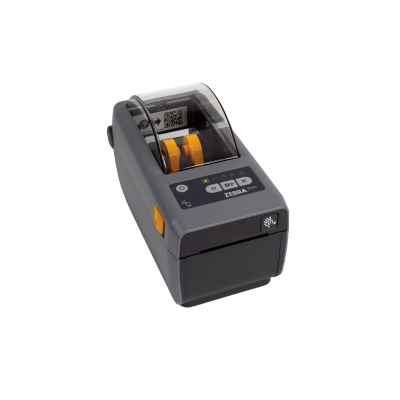

The Zebra ZD411 (ZD4A022-D01M00EZ) is a 2-inch direct thermal desktop label printer from Zebra's ZD400 series. It prints at 203 dpi across a maximum print width of 2.2 inches on label rolls from 0.585 to 2.36 inches wide, with no ribbon to replace. This configuration includes USB 2.0, USB Host, Bluetooth Low Energy and a modular connectivity slot for an optional Ethernet, Wi-Fi or serial module, a US power cord and Zebra's EZPL language support (ZPL II and EPL 2), so it works with the Zebra ZDesigner Windows driver and with applications that send ZPL or EPL directly.
Zebra lists pharmacy and prescription labels among the ZD400 series applications. The compact footprint suits a fill station or counter, and Zebra's Print DNA tools cover setup, management and security across a fleet of printers.
Key points
- 2-inch direct thermal printing, 203 dpi, up to 6 inches per second
- USB 2.0, USB Host, Bluetooth Low Energy and a modular connectivity slot for an optional Ethernet, Wi-Fi or serial module
- Label rolls up to 2.36 inches wide on a 1 inch core
- ZPL II and EPL 2 printer languages; ZDesigner Windows driver
- 8.6 in. x 4.5 in. x 6.0 in., 2.2 lb
Zebra ZD411 (USB and Bluetooth) for pharmacy labeling
Specifications
| Model | Zebra ZD411 |
|---|---|
| Print method | Direct thermal (no ribbon) |
| Resolution | 203 dpi (8 dots per mm) |
| Maximum print width | 2.2 in. (56 mm) |
| Media width | 0.585 in. to 2.36 in. (15 mm to 60 mm), 1 in. core rolls |
| Interfaces | USB 2.0, USB Host, Bluetooth Low Energy; modular slot for optional Ethernet, Wi-Fi or serial |
| Printer languages | ZPL II, EPL 2, XML, ZBI, PDF Direct |
| Size and weight | 8.6 in. L x 4.5 in. W x 6.0 in. H, 2.2 lb (1.0 kg) |
Pharmacy use cases
Prescription vial labels and auxiliary labels from one workstation, shelf labels and small inventory barcodes.
Replacement guidance
Zebra names the ZD411 as the replacement for the ZD410, LP 2824, TLP 2824 and LP 2824 Plus (direct thermal) and TLP 2824 Plus (thermal transfer). It takes the same 2-inch label rolls and uses the ZPL and EPL languages those printers used, so most pharmacy systems that printed to the older model print to the ZD411 through Zebra's ZDesigner Windows driver. The ZD411 does not replace 4-inch printers such as the GK420 or GC420; for those see the ZD421 and ZD220.
Labels and media
Takes 1 inch core direct thermal rolls up to 2.36 inches wide. Common sizes: 2 x 1 inch and 2 x 1.25 inch.
Pharmacy questions
Can several workstations share this printer?
Not over the network as supplied; it connects by USB to one PC. Choose the USB, Ethernet and Bluetooth model for a shared printer.
Complete the pharmacy workstation: Zebra DS9308 hands-free scanner · Citizen CT-S310II receipt printer · Star CD4 cash drawer · labels & supplies · replacement pharmacy printers · all pharmacy equipment · pharmacy hardware guide
Compatibility with your pharmacy software and label format should be verified before ordering. Need equipment for multiple pharmacy locations? Ask about volume pricing, staging and rollout support. Not sure which printer you need? Send us your current printer model, label size and pharmacy software.
