Zebra

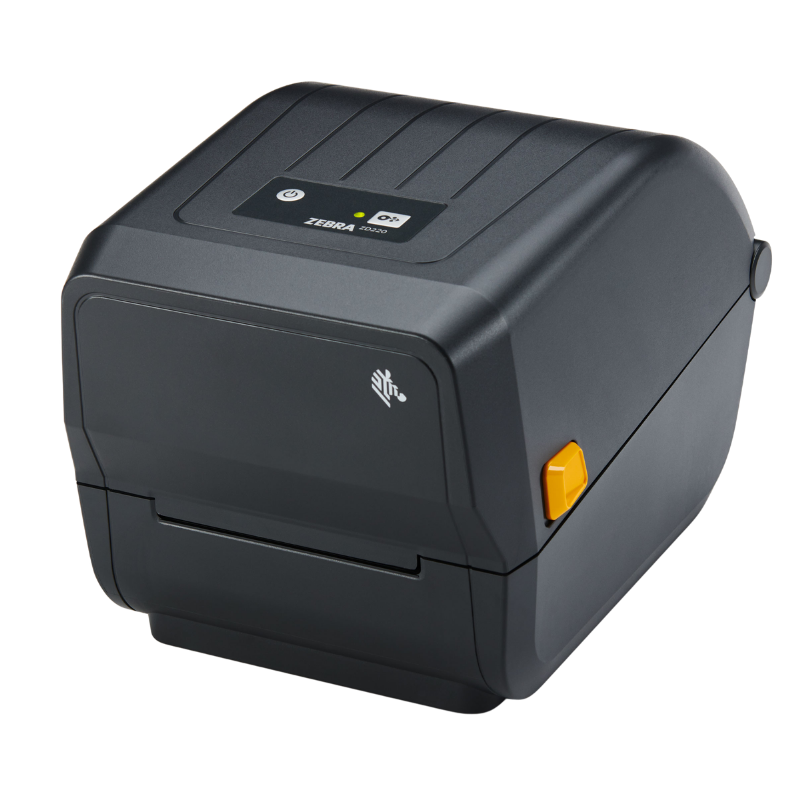

Zebra, ZD220 Direct Thermal, Desktop 4" Label Printer
Zebra, ZD220 Direct Thermal, Desktop 4" Label Printer
SKU:ZD22042-D01G00EZ
Zebra ZD220 Value Desktop 4-Inch Label Printer
An affordable, dependable Zebra desktop printer for everyday barcode, shipping, product and inventory labeling. The Zebra ZD220 delivers essential 4-inch label printing in a compact, easy-to-use design. Available in direct thermal and thermal transfer versions, it is a practical choice for businesses that need reliable Zebra printing without the advanced connectivity and management features of higher-tier desktop models.
Product Description
The Zebra ZD220 is a value-focused 4-inch desktop label printer designed for straightforward, low-to-moderate-volume printing. It provides the core features needed for shipping labels, inventory identification, retail price labels, product labels, asset tags, work-in-process labels, receipts and other routine barcode applications.
The ZD220 is available as a direct thermal model for ribbon-free printing on heat-sensitive media and as a thermal transfer model for durable printing with labels and ribbon. Both versions offer 203 dpi resolution, a maximum print width of approximately 4.09 inches and USB connectivity. An optional factory-installed dispenser automatically peels labels from the liner for faster one-at-a-time application.
With simple controls, OpenACCESS media loading and support for Zebra ZPL and EPL printer languages, the ZD220 is easy to deploy in small businesses, back offices, shipping departments, retail stores, light manufacturing operations and other environments that need dependable label printing at an economical price.
Key Features and Capabilities
- 4-inch desktop label printer
- Direct thermal and thermal transfer models
- 203 dpi print resolution
- Maximum print width of approximately 4.09 inches
- Print speeds up to 4 inches per second
- USB connectivity
- Optional factory-installed label dispenser
- OpenACCESS design for simple media loading
- Supports roll-fed and fanfold media
- Supports ZPL and EPL printer languages
- 128 MB Flash and 128 MB SDRAM
- Compact footprint for counters and workstations
Common Use Cases
- 4 x 6 shipping and return labels
- Inventory and receiving labels
- Retail price and shelf labels
- Product and packaging labels
- Asset and equipment identification
- Carton, case and pallet labels
- Work-in-process labels
- File and document tracking labels
- Food rotation and ingredient labels
- Visitor, ticket and event printing
Industries That Use the Zebra ZD220
Known Zebra ZD220 Configurations and SKUs
The ZD220 is offered in direct thermal and thermal transfer configurations. The following are common U.S. orderable models with USB connectivity and a U.S. power cord.
| Part Number / SKU | Configuration Title | Best Fit |
|---|---|---|
| ZD22042-D01G00EZ | ZD220d Direct Thermal Printer, 203 dpi, USB, Tear Bar, U.S. Power Cord, EZPL | Shipping labels, receipts, inventory labels and other short-to-medium-life direct thermal applications. |
| ZD22042-D11G00EZ | ZD220d Direct Thermal Printer, 203 dpi, USB, Factory-Installed Dispenser/Peeler, U.S. Power Cord, EZPL | Repetitive one-at-a-time label application where labels should be presented already separated from the liner. |
| ZD22042-T01G00EZ | ZD220t Thermal Transfer Printer, 203 dpi, USB, Tear Bar, 74-Meter Ribbon Capacity, U.S. Power Cord, EZPL | Longer-lasting product, asset, inventory and identification labels that require ribbon-based printing. |
| ZD22042-T11G00EZ | ZD220t Thermal Transfer Printer, 203 dpi, USB, Factory-Installed Dispenser/Peeler, 74-Meter Ribbon Capacity, U.S. Power Cord, EZPL | Durable thermal transfer labeling with faster manual application at packing, production or inventory workstations. |
Important: Confirm the complete Zebra part number before ordering. The print method, dispenser, regional power cord and language configuration are defined within the SKU.
Direct Thermal vs. Thermal Transfer
Compatible Accessories, Service Parts and Options
| Accessory / Option | Purpose | Selection Notes |
|---|---|---|
| Factory-Installed Label Dispenser | Peels each printed label from the liner and presents it for immediate application. | Must be ordered as part of the correct dispenser-equipped printer configuration. |
| USB Interface Cable | Connects the ZD220 to a compatible computer or host device. | Confirm the cable type and length required for the workstation. |
| Replacement Power Supply | Replaces a lost or damaged external power supply. | Use a Zebra-approved supply matched to the ZD220 and local power requirements. |
| Replacement Printhead | Restores print quality when the original 203 dpi printhead reaches the end of its service life. | Select the correct part for the direct thermal or thermal transfer chassis. |
| Replacement Platen Roller | Replaces a worn drive roller that can cause feeding or print-quality issues. | Match the platen kit to the exact ZD220 model and print method. |
| Ribbon Carriage | Replacement ribbon-handling assembly for the ZD220 thermal transfer printer. | Not used with the direct thermal model. |
| Zebra OneCare Service | Adds extended repair and support coverage beyond the standard warranty. | Coverage term and service level should be selected when the printer is purchased. |
| Cleaning Pens and Approved Swabs | Supports routine printhead and media-path cleaning. | Regular cleaning helps preserve print quality and reduce adhesive buildup. |
The ZD220 is designed as a value model and does not offer the field-upgradeable Ethernet, Wi-Fi, Bluetooth, cutter or advanced management options found on higher-tier Zebra desktop printers. Choose a ZD421 or ZD621 when those capabilities are required.
Labels, Ribbons and Consumables
| Consumable Type | Recommended Use | Selection Guidance |
|---|---|---|
| 4 x 6 Direct Thermal Shipping Labels | Carrier, fulfillment, return and carton labels. | For the ZD220d. Confirm roll diameter, core size, perforation, adhesive and sensing method. |
| Zebra Z-Perform Direct Thermal Labels | Shipping, receiving, inventory, shelf and general barcode labels. | Economical paper media for short-to-medium-life indoor applications. |
| Zebra Z-Select Direct Thermal Labels | Applications requiring smoother stock and improved print quality. | Useful for sharper text, smaller barcodes and a more polished label appearance. |
| Thermal Transfer Paper Labels | Product, carton, shelf, inventory and general identification labels. | For the ZD220t. Pair with a compatible wax or wax/resin ribbon. |
| Thermal Transfer Synthetic Labels | Asset, equipment, chemical, freezer and durable identification applications. | Pair with a wax/resin or resin ribbon selected for the face stock and exposure conditions. |
| 74-Meter Wax Ribbon | General-purpose printing on uncoated and coated paper labels. | Most economical ribbon choice for standard indoor paper-label applications. |
| 74-Meter Wax/Resin Ribbon | Improved resistance to abrasion, smudging and moderate environmental exposure. | Good for coated paper and selected synthetic labels. |
| 74-Meter Resin Ribbon | High-durability printing on compatible synthetic labels. | Use for chemical, abrasion, outdoor or demanding applications after media qualification. |
| Removable-Adhesive Labels | Shelf, tote, temporary identification and promotional labeling. | Test adhesion and removability on the actual application surface. |
| Freezer and Cold-Temperature Labels | Food storage, laboratory, pharmacy and refrigerated inventory applications. | Select an adhesive designed for both the application temperature and service temperature. |
| Cleaning Supplies | Printhead, platen roller and media-path maintenance. | Use Zebra-approved cleaning materials and follow the recommended maintenance schedule. |
The ZD220 thermal transfer model is commonly configured for 74-meter ribbon rolls. Confirm ribbon width, ink side, core size and material compatibility before ordering.
When to Choose the Zebra ZD220
