Zebra, ZD421, 4" Thermal Transfer Label Printer
Zebra, ZD421, 4" Thermal Transfer Label Printer
SKU:ZD4A042-301E00EZ

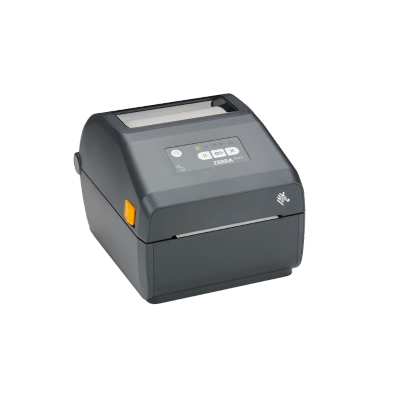

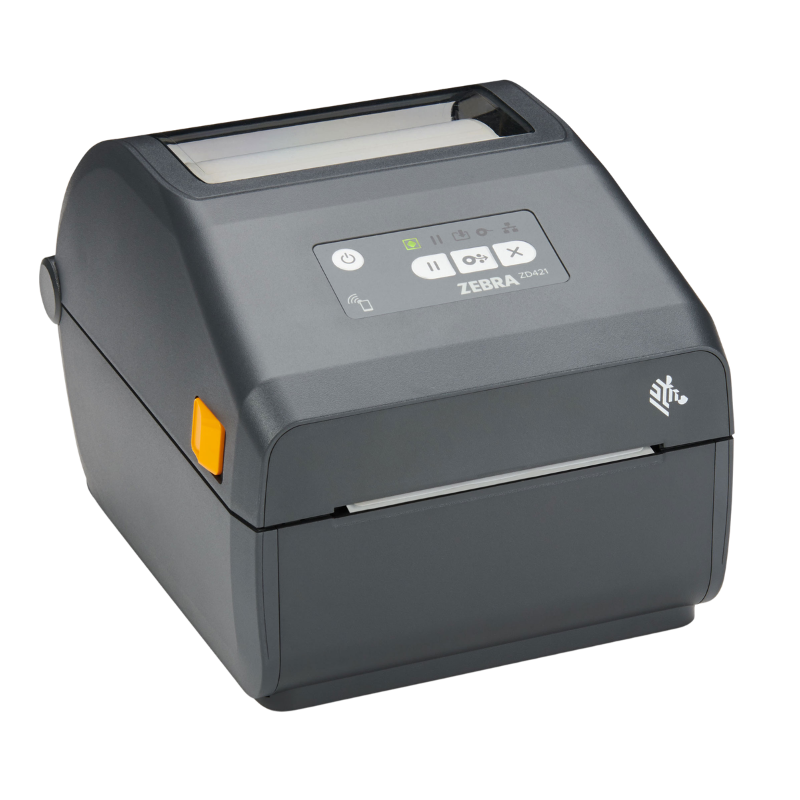

Zebra ZD421t Thermal Transfer Desktop Label Printer
A versatile 4-inch thermal transfer printer for durable shipping, inventory, product, asset and compliance labels. The Zebra ZD421t combines thermal transfer and direct thermal printing with a compact desktop footprint, intuitive controls and flexible connectivity. It is designed for businesses that need dependable barcode labels with longer life and greater resistance to handling, abrasion, moisture and environmental exposure.
Product Description
The Zebra ZD421t is the standard ribbon-roll thermal transfer version of the ZD421 desktop printer. It uses thermal transfer ribbon to produce durable labels on compatible paper and synthetic materials, while also supporting direct thermal media for short-life applications that do not require ribbon. Its approximately 4-inch print width makes it suitable for common shipping, carton, inventory, product, shelf and asset-label formats.
Available in 203 dpi and 300 dpi configurations, the ZD421t can be selected for either general-purpose barcode printing or more detailed output. The 203 dpi model is well suited to standard shipping and inventory labels, while the 300 dpi model provides improved definition for small text, compact barcodes and detailed graphics. USB and USB Host are standard, with Ethernet, serial, Wi-Fi and Bluetooth available depending on the selected configuration or installed upgrade module.
Key Features and Capabilities
- Thermal transfer and direct thermal printing
- Approximately 4-inch maximum print width
- 203 dpi and 300 dpi configurations
- Up to approximately 6 ips at 203 dpi
- USB 2.0 and USB Host standard
- Ethernet, serial and wireless options
- Optional label dispenser and cutter
- Movable media sensor for varied label formats
- Supports ZPL and EPL printer languages
- Zebra DNA tools for setup, security and management
Common Use Cases
- 4 x 6 shipping and return labels
- Durable inventory and warehouse labels
- Asset and equipment identification
- Product, carton and case labels
- Retail shelf and merchandise labels
- Work-in-process and component labels
- Document and records tracking
- Food rotation and ingredient labels
Industries That Use the Zebra ZD421t
Common ZD421t Configurations and Known SKUs
The following are representative U.S. configurations for the standard ribbon-roll ZD421 thermal transfer printer. Zebra offers additional combinations based on resolution, connectivity, dispenser, cutter, region, TAA requirements and included power cord.
| Part Number / SKU | Configuration Title | Best Fit |
|---|---|---|
| ZD4A042-301M00EZ | ZD421t Thermal Transfer, 203 dpi, USB, USB Host, Modular Connectivity Slot, BTLE5, U.S. Cord | General-purpose deployments that may add Ethernet, serial or wireless connectivity later. |
| ZD4A042-301E00EZ | ZD421t Thermal Transfer, 203 dpi, USB, USB Host, Ethernet, BTLE5, U.S. Cord | Networked shipping, inventory and shared-workstation printing. |
| ZD4A043-301M00EZ | ZD421t Thermal Transfer, 300 dpi, USB, USB Host, Modular Connectivity Slot, BTLE5, U.S. Cord | Small text, compact barcodes and detailed graphics with future connectivity flexibility. |
| ZD4A043-301E00EZ | ZD421t Thermal Transfer, 300 dpi, USB, USB Host, Ethernet, BTLE5, U.S. Cord | High-resolution networked label printing. |
| ZD4A042-301C00EZ | ZD421t Thermal Transfer, 203 dpi, USB, USB Host, Serial, BTLE5, U.S. Cord | Legacy systems, scales, industrial terminals and specialized serial-connected equipment. |
Important: Confirm the complete Zebra part number before ordering. A single character may change print method, resolution, connectivity, media handling, regional certification or included power cord.
Compatible Accessories and Upgrade Options
| Accessory / Option | Purpose | Selection Notes |
|---|---|---|
| Ethernet Connectivity Module | Adds wired Ethernet to compatible modular-slot configurations. | Useful for shared printers, centralized management and fixed network workstations. |
| Serial Connectivity Module | Adds serial connectivity for legacy hosts and specialized equipment. | Confirm connector and communication settings before ordering. |
| Wi-Fi / Bluetooth Wireless Module | Adds wireless network and Bluetooth connectivity to compatible configurations. | Wireless standards and regional certifications vary by module and printer revision. |
| Label Dispenser / Peeler | Separates each printed label from the liner and presents it for immediate application. | Best for repetitive labeling where operators apply one label at a time. |
| Cutter | Cuts compatible continuous media, tags or labels after printing. | Confirm media material and thickness are approved for cutter use. |
| Battery Base and Battery | Supports cart-based and mobile desktop printing away from a fixed outlet. | Useful for healthcare carts, warehouse stations and mobile labeling work areas. |
| Replacement Printhead | Restores print quality when the original printhead reaches the end of its service life. | The replacement must match the printer's 203 dpi or 300 dpi resolution. |
| Replacement Platen Roller | Replaces a worn drive roller that can contribute to feeding or print-quality problems. | Match the part to the exact ZD421t chassis and print resolution. |
Accessory compatibility depends on the exact ZD421t configuration and installed front bezel or connectivity slot. Verify fit before ordering.
Labels, Ribbons and Consumables
| Consumable Type | Recommended Use | Selection Guidance |
|---|---|---|
| Zebra Z-Perform Thermal Transfer Paper Labels | Shipping, carton, inventory, shelf and general barcode labels. | Pair with a compatible wax or wax/resin ribbon based on durability requirements. |
| Zebra Z-Select Thermal Transfer Paper Labels | Applications needing smoother paper stock and improved print quality. | Useful for smaller barcodes, sharper text and higher-quality presentation. |
| Zebra Z-Ultimate Synthetic Labels | Asset, product and identification labels requiring moisture and abrasion resistance. | Usually paired with a compatible resin ribbon. |
| Zebra 2300 Wax Ribbon | Economical general-purpose printing on uncoated and coated paper labels. | Best for indoor applications with limited abrasion or chemical exposure. |
| Zebra 3200 Wax/Resin Ribbon | Durable printing on coated paper and selected synthetic labels. | Provides better smear and abrasion resistance than standard wax. |
| Zebra 6100 Wax/Resin Ribbon | General wax/resin applications requiring dependable resistance and image quality. | Confirm compatibility with the selected face stock. |
| Zebra 5095 Resin Ribbon | High-durability synthetic labels exposed to abrasion, moisture or chemicals. | Qualify the complete label-and-ribbon combination in the actual operating environment. |
| Cleaning Pens and Approved Swabs | Routine printhead and media-path maintenance. | Regular cleaning helps preserve print quality and extend printhead life. |
Ribbon width should cover the full label liner without exceeding the printer's supported ribbon width. Label face stock, adhesive and ribbon chemistry must be matched to the surface, temperature, exposure and required label life.
Choosing Between 203 dpi and 300 dpi
