Unitech

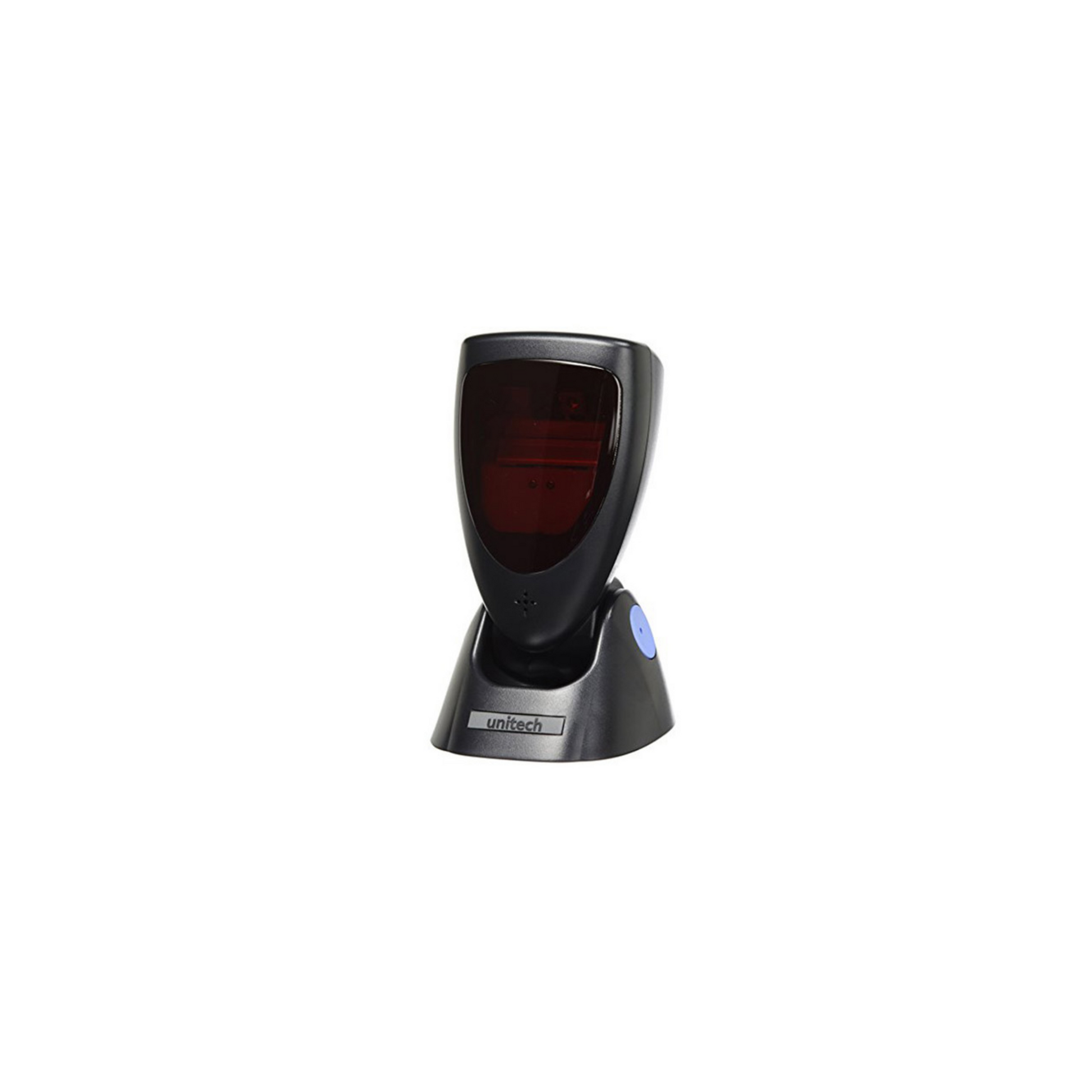

Unitech FC77 2D Imager Presentation Barcode Scanner, USB (FC77-2UCB00-SG)
Unitech FC77 2D Imager Presentation Barcode Scanner, USB (FC77-2UCB00-SG)
SKU:FC77-2UCB00-SG
The Unitech FC77-2UCB00-SG is the 2D imager version of the Unitech FC77, an on-counter presentation scanner with a USB interface. Its compact footprint suits retail counters with limited space, and it reads printed barcodes as well as digital barcodes, including QR codes, shown on smartphones and tablets.
Key features
- 2D imager: scans common 1D, composite, stacked and 2D barcodes.
- Digital barcodes: reads barcodes displayed on smartphone and tablet screens, including QR codes.
- Adjustable scan head: the adjustable base lets the scan head move forward and backward to set a convenient hands-free scanning position.
- Counter or wall placement: small footprint on the counter, and the scanner can also be mounted on a wall.
- Sealed housing: environmentally sealed against moisture and dust, and built to withstand 3 ft drops to concrete.
Specifications
| Manufacturer part number | FC77-2UCB00-SG |
|---|---|
| Model | Unitech FC77 presentation scanner |
| Scanner type | 2D imager (the FC77 family also includes a 1D imager model) |
| Light source | 625 nm LED |
| Scan distance | Contact to 3.54 in |
| Operation mode | Continuous |
| Interface | USB |
| Dimensions | 6.4 in H x 3.35 in W x 3.84 in D |
| Weight | 12.4 oz |
| Operating temperature | 32 to 104°F |
| Storage temperature | -4 to 140°F |
| Drop | 3 ft to concrete |
Typical applications
- Hands-free scanning at retail checkout counters
- Reading QR codes and other digital barcodes from customers' phones and tablets
- Counters with little free space, or wall-mounted scanning positions
Compatibility
The FC77-2UCB00-SG uses a USB interface. Unitech lists a USB cable (part number 0114-SM04121) as an FC77 accessory, along with an RS232 cable (0114-SM01121) and a power adapter for the RS232 cable (0104-SP00091).
Frequently asked questions
What is the FC77-2UCB00-SG?
It is a part number for the Unitech FC77 presentation scanner with a 2D imager and a USB interface.
Can the FC77 read QR codes on a phone screen?
Yes. Unitech states that the FC77 can scan digital barcodes, including QR codes, from smartphones and tablets.
What is the difference between the 2D and 1D FC77?
The 2D imager model reads 1D, composite, stacked and 2D barcodes. Unitech offers the 1D model for customers who only need standard 1D scanning.
Can the FC77 be mounted on a wall?
Yes. Unitech states the FC77 can be wall mounted, and the adjustable base moves the scan head forward or backward for hands-free scanning.
How big is the FC77?
Unitech lists the FC77 at 6.4 in H x 3.35 in W x 3.84 in D, with a weight of 12.4 oz.
