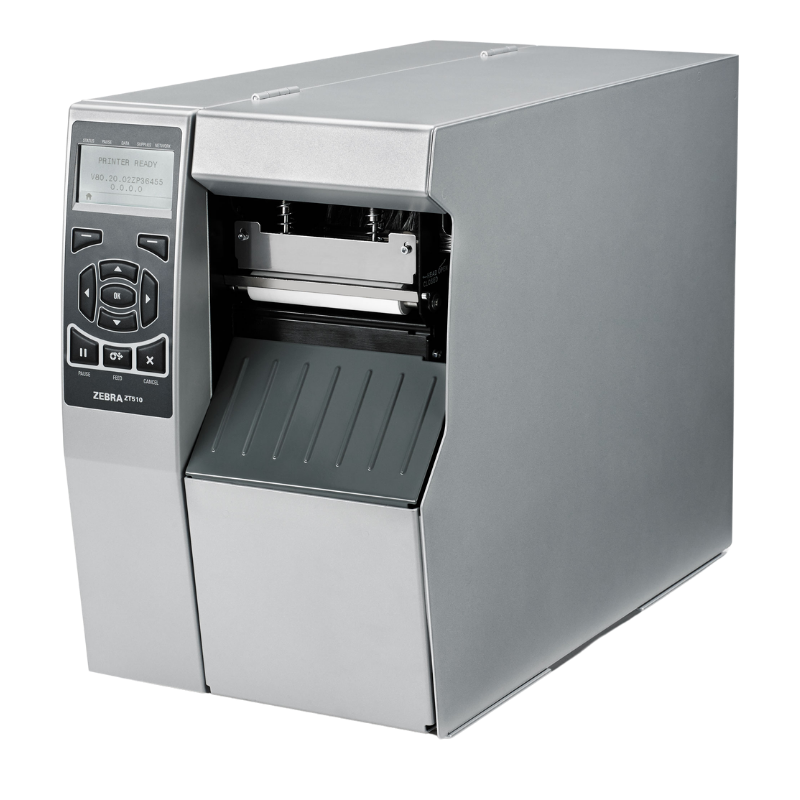

Zebra, ZT510, High Performance Industrial 4" Label Printer, Thermal Transfer, 203 DPI
Zebra, ZT510, High Performance Industrial 4" Label Printer, Thermal Transfer, 203 DPI
SKU:ZT51042-T010000Z
Zebra ZT510 High-Performance Industrial 4-Inch Label Printer – Thermal Transfer, 300 dpi
A rugged industrial label printer built for high-volume, mission-critical barcode and identification workflows. The Zebra ZT510 combines an all-metal design, fast processing, dependable media handling and 300 dpi print resolution for organizations that need sharper barcodes, smaller text and more detailed graphics than a standard 203 dpi industrial printer can provide.
Product Description
The Zebra ZT510 is a 4-inch industrial thermal transfer printer designed for demanding warehouses, manufacturing plants, distribution centers and regulated operations. This 300 dpi configuration supports durable ribbon-based label printing while also allowing direct thermal operation when ribbon-free, shorter-life labels are required. Its metal frame and enclosed industrial construction are designed for continuous use, while standard USB, serial, Gigabit Ethernet and Bluetooth Low Energy connectivity make it easier to integrate into existing labeling environments.
With a maximum print width of approximately 4.09 inches and print speeds of up to 12 inches per second at 300 dpi, the ZT510 provides a strong balance of print quality, throughput and long-term durability. It is especially well suited for compliance labels, serialized product labels, component identification, shipping labels, pallet labels, work-in-process tracking and other applications where consistent barcode readability is essential.
Key Features and Capabilities
- 4-inch industrial label printing platform
- 300 dpi resolution for detailed barcodes, text and graphics
- Thermal transfer and direct thermal printing support
- Print speeds up to 12 inches per second
- Durable all-metal frame and enclosure
- USB, serial, Gigabit Ethernet and Bluetooth Low Energy connectivity
- Color-coded media loading paths for easier operation
- Optional cutter, rewind, peel and applicator configurations
- Link-OS and Zebra printer management support
- Designed for high-duty-cycle industrial environments
Common Use Cases
- Shipping and receiving labels
- Pallet and carton identification
- Product and case labeling
- Work-in-process tracking
- Serialized inventory labels
- Compliance and regulatory labels
- Small-text component labels
- Asset and equipment identification
- Automotive parts labeling
- Print-and-apply production workflows
Industries That Use the Zebra ZT510
Known Configuration and SKU
The configuration below matches the requested 4-inch, thermal transfer, 300 dpi Zebra ZT510 industrial printer. Zebra also produced additional ZT510 variants with rewind, cutter, wireless and other media-handling options.
| Part Number / SKU | Configuration Title | Included Interfaces / Features |
|---|---|---|
| ZT51043-T010000Z | Zebra ZT510, 4-Inch Industrial Printer, Thermal Transfer, 300 dpi, Tear | US power cord, serial, USB, Gigabit Ethernet, Bluetooth Low Energy, monochrome display, ZPL |
| ZT51043-T210000Z | Zebra ZT510, 4-Inch Industrial Printer, Thermal Transfer, 300 dpi, Rewind | US power cord, serial, USB, Gigabit Ethernet, Bluetooth, internal rewind configuration |
Important: Verify the complete Zebra part number before ordering. Media handling, wireless connectivity, power cord, display, firmware language, regional certification and included options can change based on the SKU suffix.
Compatible Accessories and Upgrade Options
| Accessory / Option | Purpose | Selection Guidance |
|---|---|---|
| Cutter option | Automatically cuts labels, tags or continuous media after printing. | Best for batch printing, ticketing and separated tag applications. |
| Peel / liner take-up option | Presents labels individually and collects the used liner. | Useful for manual apply-at-printer workflows. |
| Internal rewind option | Rewinds printed labels or backing material inside the printer. | Choose a factory rewind configuration or verify field-upgrade compatibility. |
| Applicator interface | Connects the printer to automated print-and-apply equipment. | Confirm compatibility with the applicator and host controls. |
| Wireless connectivity option | Adds Wi-Fi capability for locations without a wired network drop. | Confirm supported radio generation and exact printer configuration. |
| P1083347-021 | ZT510 media rewind upgrade kit. | Verify printer serial range and installed media-handling hardware before purchase. |
| P1083347-037 | ZT510 cutter cover with PCBA service kit. | Service component for compatible cutter-equipped units. |
| P1083347-033 | ZT510 cutter catch tray. | Collects cut labels or tags after printing. |
| 300 dpi replacement printhead | Restores print quality when the printhead reaches the end of its service life. | Must match the ZT510 and 300 dpi resolution. |
| Replacement platen roller | Maintains media traction and print quality. | Select the roller that matches the exact printer and media configuration. |
| Zebra OneCare service plan | Provides repair coverage and service options for critical printer fleets. | Coverage level and duration vary by plan and printer eligibility. |
Labels, Ribbons and Consumables
| Consumable Type | Best For | Important Considerations |
|---|---|---|
| Industrial paper thermal transfer labels | Shipping, inventory, pallet, carton and general warehouse labels. | Pair with a compatible wax or wax/resin ribbon. |
| Polypropylene labels | Moisture-resistant product, tote, bin and cold-chain identification. | Typically paired with wax/resin or resin ribbon. |
| Polyester labels | Durable asset, component, electronics and compliance labeling. | Usually requires a resin ribbon and application testing. |
| Direct thermal labels | Short-life shipping, routing and receiving applications. | No ribbon required; avoid prolonged heat, UV or chemical exposure. |
| Wax ribbon | General-purpose printing on uncoated or coated paper labels. | Most economical ribbon type; lower abrasion resistance. |
| Wax/resin ribbon | Higher-durability printing on coated paper and synthetic labels. | Good balance of image quality, resistance and cost. |
| Resin ribbon | Chemical-, heat- and abrasion-resistant synthetic labels. | Qualify the ribbon with the exact label face stock. |
| Cleaning supplies | Routine maintenance of the printhead, platen roller and media path. | Regular cleaning helps protect print quality and extend component life. |
The ZT510 accepts roll-fed or fanfold media, including die-cut, continuous, black-mark and notched materials. Confirm label width, roll diameter, core size, sensing method, adhesive, environmental exposure and ribbon compatibility before ordering supplies.
Why Choose 300 dpi?
The 300 dpi ZT510 is a strong choice when labels contain smaller barcodes, dense compliance text, detailed logos, serialized information or compact data fields. Compared with 203 dpi, it provides finer image definition while maintaining industrial print speeds and durability. For ordinary 4 x 6 shipping labels with large barcodes, 203 dpi may be sufficient; for smaller labels or more detailed output, 300 dpi is often the better fit.
