Zebra ZD411 2-Inch Direct Thermal Desktop Label Printer, USB/Ethernet/Bluetooth LE (ZD4A022-D01E00EZ)
Zebra ZD411 2-Inch Direct Thermal Desktop Label Printer, USB/Ethernet/Bluetooth LE (ZD4A022-D01E00EZ)
SKU:ZD4A022-D01E00EZ

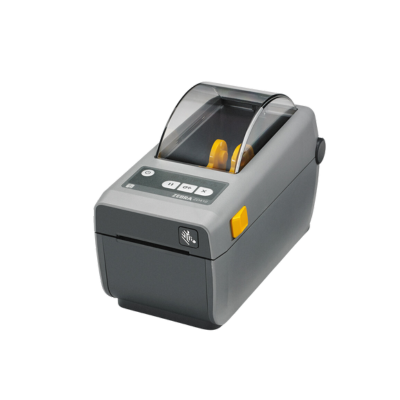

The Zebra ZD411 is a 2-inch desktop label printer, and part number ZD4A022-D01E00EZ is a direct thermal ZD411 (ZD411d) configured with Ethernet in addition to the USB, USB Host and Bluetooth Low Energy connections found on every ZD411. It prints labels, tags, receipts and wristbands without a ribbon and runs Zebra's ZPL II and EPL2 languages, so existing Zebra label formats and applications can keep working.
Key features
- Direct thermal printing: no ribbon to load; Zebra's ribbon specifications apply only to ZD411 thermal transfer models.
- Wired connectivity: USB 2.0 and USB Host are standard on every ZD411, and this configuration adds 10/100 Ethernet for network printing.
- Bluetooth Low Energy setup: configure the printer from Android or iOS devices with Zebra's printer setup mobile app.
- Zebra languages: ZPL II and EPL2, plus XML-enabled printing and PDF Direct.
- Simple operation: five status icons and a three-button interface show what the printer needs, from replenishing media to resolving printer issues.
- Flexible media handling: rolls up to 5 in (127 mm) OD on 0.5 in or 1 in cores, a fan-fold feed slot and a full-width moveable black mark sensor.
- Field-upgradeable: add a dispenser/peeler, cutter, serial port or dual-radio Wi-Fi and Bluetooth later.
Specifications
| Part number | ZD4A022-D01E00EZ |
|---|---|
| Model | ZD411d (direct thermal) |
| Interfaces | USB 2.0 (Type B), USB Host, 10/100 Ethernet, Bluetooth Low Energy (setup app) |
| Programming languages | ZPL II, EPL2, XML-enabled printing, PDF Direct |
| Memory | 512 MB flash, 256 MB SDRAM |
| Media width | 0.585 in to 2.36 in (15 mm to 60 mm) |
| Label length | 0.25 in to 39.0 in (6.35 mm to 991 mm) |
| Media roll | 5.00 in (127 mm) maximum OD; 0.5 in and 1.0 in cores standard; 1.5 in, 2.0 in and 3.0 in cores with optional adapters |
| Media thickness | 0.0024 in to 0.0075 in (maximum in tear-off mode only) |
| Media types | Roll-fed or fan-fold; die-cut or continuous labels with or without black mark; tag stock; continuous receipt paper; wristbands |
| Media sensors | Full-width moveable reflective/black mark; multi-position transmissive/gap |
| User interface | 5 status icons, 3 buttons |
| Clock | Real Time Clock |
| Dimensions | 8.6 in L x 4.5 in W x 6.0 in H (220 x 115 x 151 mm) |
| Weight | 2.2 lb (1.0 kg) |
| Power | External power supply, 100 VAC to 240 VAC, 50 Hz to 60 Hz |
| Operating temperature | 40°F to 105°F (4.4°C to 41°C) |
What's in the box
Zebra lists these items in the box for ZD411 direct thermal printers:
- Printer
- AC power supply
- Power cord(s)
- USB cable
- Quick Start Guide
- Regulatory Guide
Typical applications
- Retail shelf, price markdown and pharmacy labels
- Healthcare specimen collection and prescription labels
- Patient ID wristbands
- Receipts and return tags
Frequently asked questions
Does the Zebra ZD411 ZD4A022-D01E00EZ need a ribbon?
No. This is a direct thermal ZD411, which prints on direct thermal labels, tags, receipt paper and wristbands. Zebra's ribbon specifications apply only to ZD411 thermal transfer models.
Can I print to this ZD411 over Bluetooth?
The Bluetooth Low Energy connection on the ZD411 is intended for Zebra's printer setup mobile app. For printing over Bluetooth, Zebra recommends Bluetooth Classic, which comes with its optional dual-radio Wi-Fi and Bluetooth module. For everyday printing, this configuration connects over USB or Ethernet.
What label widths does the Zebra ZD411 support?
The ZD411 accepts media from 0.585 in to 2.36 in (15 mm to 60 mm) wide and labels from 0.25 in to 39 in long, on rolls up to 5 in in outside diameter with 0.5 in or 1 in cores.
Will my existing Zebra label formats print on the ZD411?
The ZD411 runs Zebra's ZPL II and EPL2 languages, and Zebra says ZD400 Series printers let you keep using the same label formats and applications.
Can I add a peeler or cutter to the ZD411 later?
Yes. Zebra offers a field-installable dispenser/peeler for direct thermal models and a field-installable cutter.
