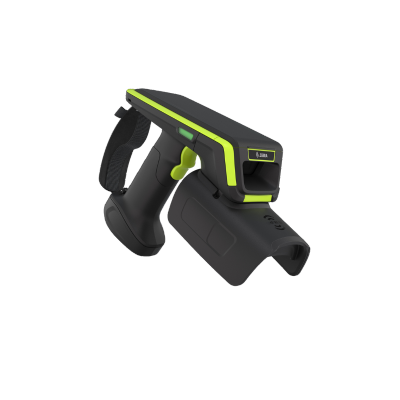

Zebra RFD9090 Long-Range UHF RFID Sled, Linear Polarized Antenna, SE4750MR Imager (RFD9091-G30G700-US)
Zebra RFD9090 Long-Range UHF RFID Sled, Linear Polarized Antenna, SE4750MR Imager (RFD9091-G30G700-US)
SKU:RFD9091-G30G700-US
The Zebra RFD9090 is the long-range model in Zebra's RFD90 ultra-rugged UHF RFID sled family. It mounts to supported Zebra mobile computers or connects to third-party smartphones and tablets over Bluetooth to add UHF RFID reading and barcode scanning. Part number RFD9091-G30G700-US is the Premium Plus configuration with a linear polarized Yagi antenna, SE4750MR imager, Bluetooth, Wi-Fi and a 7,000 mAh battery, for the US, Canada and Puerto Rico.
Key features
- Read rate of 1,300+ tags per second with Zebra proprietary radio technology (EPC Class 1 Gen 2, EPC Gen2 V2)
- Long-range linear polarized Yagi antenna; Zebra's current spec sheet lists a nominal read range of 95 ft (29 m)
- SE4750MR standard-range imager for barcode scanning from the same sled
- Bluetooth 5.3 with NFC tap-to-pair, Wi-Fi 6 for over-the-air device management, and eConnex or USB cable cup connections
- Quick-release PowerPrecision+ 7,000 mAh Li-Ion battery
- Tri-function trigger and item-finder mode for locating tagged items
- IP65 and IP67 sealing, multiple 6 ft (1.8 m) drops to concrete and an operating range of -4°F to 131°F (-20°C to 55°C)
Specifications
| Part number | RFD9091-G30G700-US |
|---|---|
| RFID standards | EPC Class 1 Gen 2; EPC Gen2 V2 |
| Read rate | 1,300+ tags/sec |
| Nominal read range | 95 ft (29 m), per Zebra's current spec sheet |
| Frequency (US) | 902-928 MHz |
| Imager | SE4750MR standard range: 1280 x 960 sensor, 31° x 23° field of view, 655 nm laser aimer |
| Wireless | Bluetooth 5.3 (SPP, HID and Apple iAP2/MFi profiles); Wi-Fi 6, IEEE 802.11 ax/ac/a/b/g/n, 2x2 MU-MIMO; NFC tap-to-pair |
| Host connection | eConnex 8-pin connection, Bluetooth, USB cable cup |
| Battery | Quick-release PowerPrecision+ Li-Ion, 7,000 mAh |
| Dimensions | 9.8 x 3.8 x 6.8 in (248 x 96.3 x 173 mm) |
| Weight | 26.8 oz (759 g) with SE4750MR |
| Sealing | IP65 (spray) and IP67 (submersion) |
| Drop and tumble | Multiple 6 ft (1.8 m) drops to concrete; 500 tumble cycles (1,000 drops) at 1.6 ft (0.5 m) |
| Operating temperature | -4°F to 131°F (-20°C to 55°C) |
What's in the box
- RFD9090 UHF RFID sled
- Battery
- Quick start guide
Mounting adaptors for specific mobile computers, charging cradles and the USB cable cup are separate accessories in Zebra's RFD90 accessory guide.
Compatibility
Zebra's RFD90 accessory guide lists these hosts:
- eConnex or Bluetooth mounting: Zebra TC52ax with SE4720, TC53/TC58, TC70/TC70x/TC72/TC75/TC75x/TC77 and TC73/TC78
- Bluetooth mounting: Zebra TC21/TC26 and TC51/TC52/TC52x/TC56/TC57/TC57x
- Third-party smartphones and tablets over Bluetooth, including an adaptor for OtterBox uniVERSE cases
Zebra's spec sheet also lists Windows-based PCs as hosts. The sled can be configured with Zebra's 123RFID Mobile or 123RFID Desktop tools.
Typical applications
- Transportation and logistics: cycle counting, item locating, baggage tracking and cold chain
- Manufacturing: work-in-progress tracking and raw materials inventory
- Government: kitting, asset tracking and chain of custody
Frequently asked questions
What is the difference between the RFD9090 and the RFD9030?
The RFD9090 is Zebra's long-range RFD90 model with a linear polarized Yagi antenna and a listed nominal read range of 95 ft (29 m). The RFD9030 is the standard-range model with a circular polarized antenna and a listed nominal range of 40 ft (12 m). The RFD9090 is also larger: 9.8 x 3.8 x 6.8 in and 26.8 oz with the SE4750MR imager, versus 7.4 x 3.2 x 6.8 in and 25 oz.
What is the read range of the Zebra RFD9090?
Zebra's current RFD90 specification sheet lists a nominal read range of 95 ft (29 m) for the RFD9090, with a read rate of 1,300+ tags per second.
Does the RFD9090 need a Zebra mobile computer?
No. Zebra lists its own mobile computers, third-party smartphones and tablets, and Windows-based PCs as hosts. Zebra devices mount with an eConnex or Bluetooth adaptor, and third-party phones connect over Bluetooth.
Does this RFD9090 include Wi-Fi?
Yes. Part number RFD9091-G30G700-US includes Wi-Fi 6, which Zebra uses for over-the-air device management, along with Bluetooth 5.3 and NFC tap-to-pair.
