Wasp
Wasp, WWS652 2D Wireless Barcode Scanner
Wasp, WWS652 2D Wireless Barcode Scanner
SKU:633809014413

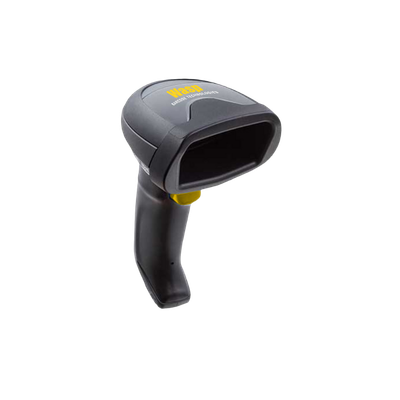

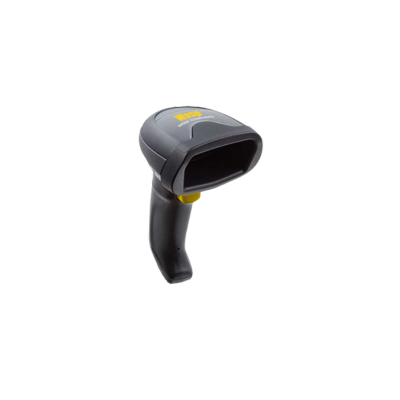

Wasp WWS652 Wireless 2D Barcode Scanner
The Wasp WWS652 Wireless 2D Barcode Scanner is a business-grade cordless barcode scanner designed for retail, inventory, warehouse, receiving, stockroom, asset tracking, order fulfillment, and general point-of-sale applications.
Its 1-megapixel omnidirectional imaging engine reads common 1D and 2D barcodes without requiring the user to carefully line up the scanner with the barcode. Bluetooth wireless connectivity gives employees freedom to move around a counter, stockroom, warehouse, receiving area, or inventory location without being tethered to a workstation.
The WWS652 is an excellent choice when you need more mobility and durability than a basic corded scanner, but do not require an ultra-rugged industrial long-range scanner.
Best for: inventory control, retail POS, receiving, shipping, stockrooms, warehouses, asset tracking, order picking, product lookup, and other applications that require reliable wireless 1D and 2D barcode scanning.
Why Choose the Wasp WWS652?
- Wireless Barcode Scanning – Move away from the workstation and scan products, inventory, cartons, assets, and labels without a scanner cable restricting movement.
- Reads 1D & 2D Barcodes – Supports traditional linear barcodes as well as QR codes, Data Matrix, PDF417, GS1 formats, postal codes, and numerous other barcode symbologies.
- Omnidirectional Scanning – The barcode does not need to be perfectly aligned with the scanner, helping employees scan faster and more naturally.
- Bluetooth Wireless Connectivity – Bluetooth 4.0 provides wireless communication with a supported host or base station.
- Up to 164-Foot Wireless Range – Provides up to approximately 50 meters / 164 feet of open-air range when used with the appropriate base station.
- 1 Megapixel Imaging Sensor – 1280 × 800 pixel image sensor helps provide fast and accurate barcode capture.
- Scans Barcodes from Screens – 2D imaging technology can be useful for scanning supported barcodes displayed on smartphones and other electronic displays.
- Built for Business Use – IP52 sealing and resistance to repeated 5-foot drops provide additional protection for retail, stockroom, and light warehouse environments.
- Visual Good-Read Feedback – Wasp's Green Spot technology provides visible confirmation directly on the barcode after a successful scan.
- Motion-Sensing Operation – Motionix™ technology can automatically change operating modes based on scanner movement and position.
Ideal Applications
The WWS652 can support a wide range of barcode scanning workflows, including:
- Retail point-of-sale scanning
- Inventory counting and cycle counts
- Stockroom inventory
- Product receiving
- Shipping and fulfillment
- Order picking and packing
- Warehouse inventory
- Asset tracking
- Equipment identification
- Product lookup
- Serial-number scanning
- QR-code scanning
- Membership and loyalty applications
- Office and back-room inventory
1D and 2D Barcode Scanning
Unlike basic 1D laser scanners, the Wasp WWS652 uses area-imaging technology to capture both traditional linear barcodes and popular 2D barcode formats.
Supported barcode families include common formats such as:
- UPC-A / UPC-E
- EAN
- Code 39
- Code 128
- GS1 DataBar
- QR Code
- Micro QR
- Data Matrix
- PDF417
- MicroPDF417
- Aztec Code
- MaxiCode
- Postal barcode formats
- GS1 composite codes
This makes the WWS652 considerably more versatile than a traditional 1D-only scanner.
Wireless Freedom for Inventory and POS
Cordless scanning can make a substantial difference when employees need to scan objects that cannot conveniently be brought to a checkout counter or computer.
With a compatible base station, the WWS652 can provide an open-air wireless range of up to approximately 164 feet (50 meters). Actual range can vary depending on the building, equipment, interference, host device, and surrounding environment.
That makes the WWS652 useful for stockrooms, receiving areas, retail sales floors, light warehouses, and inventory areas where a corded scanner would restrict movement.
Durability for Everyday Business Use
The WWS652 is designed for more demanding business environments than a basic office scanner.
- Drop resistance: Repeated drops from approximately 5 feet / 1.5 meters onto concrete
- Environmental sealing: IP52
- Operating temperature: 32°F to 122°F (0°C to 50°C)
- Humidity: Up to 95% non-condensing
- Trigger durability: Rated for up to 10 million activations
For extremely harsh warehouse, outdoor, manufacturing, freezer, or industrial environments, consider an ultra-rugged industrial scanner instead.
Key Specifications
| Manufacturer | Wasp Barcode Technologies |
| Model | WWS652 |
| UPC / SKU | 633809014413 |
| Scanner Type | Wireless Omnidirectional Area Imager |
| Barcode Capability | 1D & 2D |
| Image Sensor | 1 MP – 1280 × 800 pixels |
| Wireless Technology | Bluetooth 4.0 Class 1 |
| Wireless Frequency | 2.4 GHz |
| Maximum Open-Air Range | Up to 164 ft / 50 m with base station |
| Interfaces | USB-C, USB, RS-232 & Keyboard Wedge options |
| Motion Tolerance | 30 IPS |
| Maximum Scan Rate | Up to 60 frames per second |
| Drop Rating | Repeated 5 ft / 1.5 m drops to concrete |
| Environmental Rating | IP52 |
| Scanner Weight | Approximately 7.3 oz / 206.5 g |
| Dimensions | Approximately 6.2 × 2.7 × 4.2 in |
How Far Away Can the WWS652 Scan?
Scanning distance depends on barcode type, barcode size, print quality, contrast, lighting, and other factors.
For example, Wasp rates a standard 13-mil UPC/EAN barcode at up to approximately 20.1 inches, while other barcode types and densities have different working ranges.
The WWS652 should therefore be considered a standard-range scanner. Its long wireless communication range should not be confused with long-distance barcode reading.
Important: Wireless Range vs. Scan Range
These are two different specifications.
Wireless range describes how far the scanner can communicate with its base station or host. The WWS652 can communicate up to approximately 164 feet in ideal open-air conditions.
Scan range describes how far the barcode itself can be from the scanner. The WWS652 is designed primarily for close- to standard-range barcode reading.
If workers need to scan pallet labels or rack labels from many feet away, consider a dedicated extended-range or long-range warehouse scanner.
WWS652 for Warehouse & Inventory Applications
The WWS652 is one of our recommended options for businesses that need wireless inventory scanning without stepping up to a highly specialized ultra-rugged extended-range scanner.
Read our Best Warehouse Barcode Scanners guide to compare the WWS652 with other scanner types for picking, packing, inventory, receiving, and warehouse applications.
Build a Complete Wasp Barcode System
A barcode scanner is only one part of a complete inventory or asset-tracking workflow. Depending on your application, you may also need barcode software, a label printer, barcode labels, mobile computers, or other data-collection equipment.
Explore our Wasp Barcode, Inventory & Asset Tracking Solutions to learn how Wasp scanners, software, printers, labels, and mobile devices can work together.
Shop More Barcode Scanners
Need to compare the WWS652 with other scanners? Browse our general-purpose barcode scanners for additional corded, cordless, handheld, and presentation scanner options.
Frequently Asked Questions
Does the Wasp WWS652 scan both 1D and 2D barcodes?
Yes. The WWS652 is an omnidirectional area imager designed to scan common 1D barcodes as well as QR codes, Data Matrix, PDF417, GS1 formats, and numerous other 2D and stacked barcode formats.
Is the WWS652 wireless?
Yes. It supports Bluetooth 4.0 wireless communication and can provide up to approximately 164 feet of open-air range when used with its compatible base station.
Can the WWS652 be used for retail POS?
Yes, provided the scanner configuration and interface are compatible with your POS software and hardware. It can be a good fit when employees need both checkout scanning and the ability to move away from the register.
Can it scan QR codes?
Yes. QR Code and Micro QR are among the supported 2D barcode formats.
Can it scan barcodes displayed on a phone?
The WWS652 uses area-imaging technology, making it suitable for many supported barcodes displayed on electronic screens. Performance can vary based on screen brightness, barcode size, format, and condition.
Is the WWS652 a long-range warehouse scanner?
No. It has substantial wireless communication range, but its barcode-reading engine is intended primarily for standard-range scanning. For rack labels or pallet barcodes that must be scanned from several feet away, consider an extended-range scanner.
How durable is the WWS652?
Wasp rates the scanner to withstand repeated drops from approximately 5 feet onto concrete, and it carries an IP52 particulate and water sealing rating.
Can Spartan POS help confirm compatibility?
Yes. Barcode scanner compatibility can depend on your POS software, operating system, interface, connection method, base station, and application. Contact Spartan POS before ordering if you are replacing an existing scanner or need help selecting the correct configuration.
Why Buy Wasp Barcode Equipment from Spartan POS?
Spartan POS specializes in barcode, point-of-sale, inventory, labeling, scanning, and data-collection hardware. We help businesses select equipment around the actual application rather than simply matching a model number.
If you are building a complete Wasp inventory or asset-tracking system, our team can also help identify compatible barcode scanners, label printers, labels, software, mobile computers, and accessories.
Need help before ordering? Contact a Spartan POS Solutions Expert to confirm scanner compatibility, interfaces, accessories, quantities, or deployment requirements.
Bottom Line
The Wasp WWS652 Wireless 2D Barcode Scanner is a strong choice for businesses that need the freedom of cordless scanning combined with modern 1D/2D imaging.
Its omnidirectional 1-megapixel scan engine, Bluetooth connectivity, up to 164-foot wireless range, IP52 protection, and 5-foot drop resistance make it particularly well suited for retail, stockroom, inventory, receiving, fulfillment, and light warehouse applications.
For businesses that need wireless mobility but do not require an ultra-rugged or specialized extended-range industrial scanner, the WWS652 offers a practical middle ground between standard desktop scanning and heavy-duty warehouse equipment.
