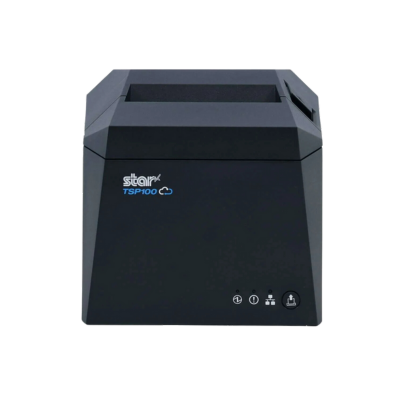

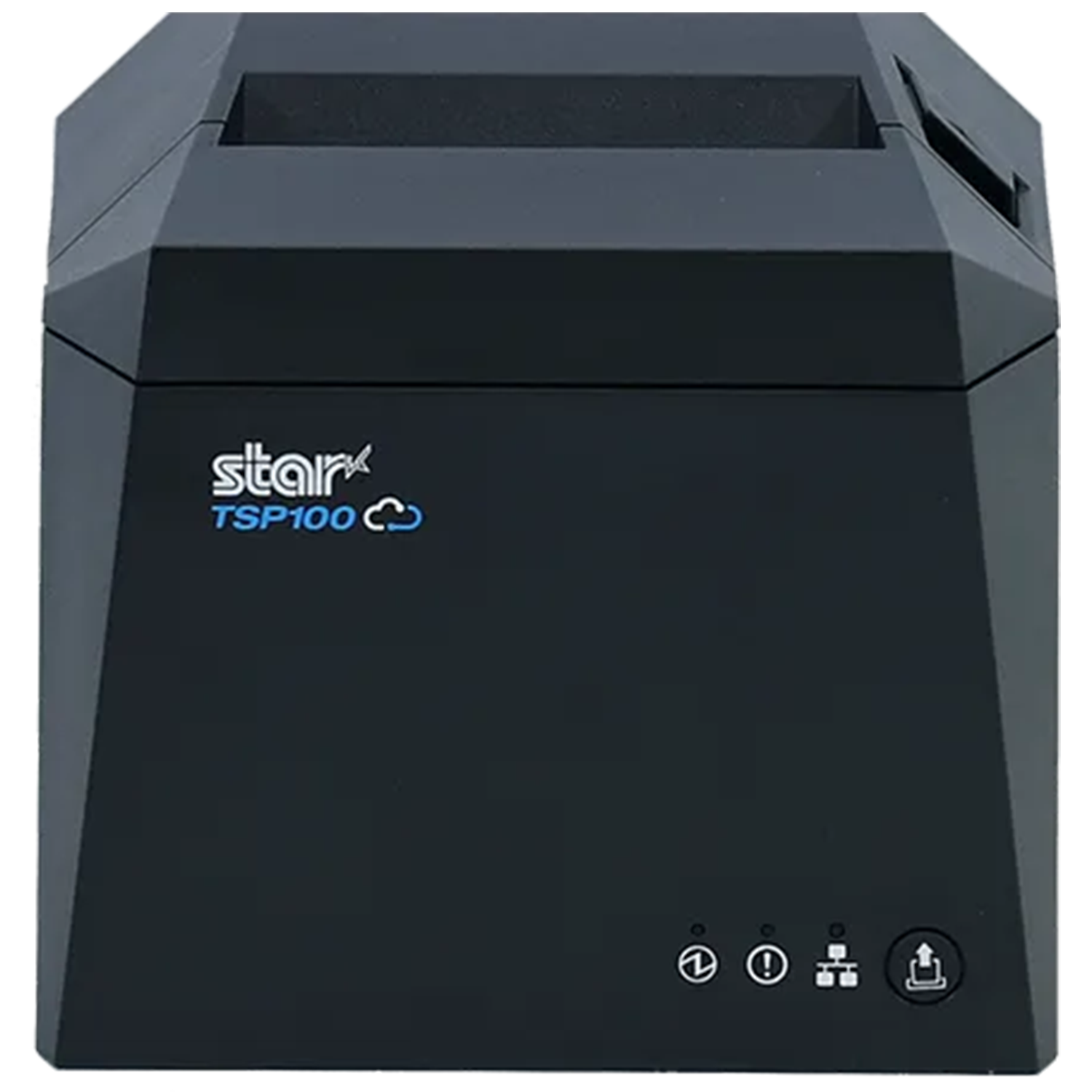

Star Micronics TSP143IVUE Thermal Receipt Printer for OpenTable, USB-C and Ethernet, Gray (39473010)
Star Micronics TSP143IVUE Thermal Receipt Printer for OpenTable, USB-C and Ethernet, Gray (39473010)
SKU:39473010-OT
The Star Micronics TSP143IVUE GRY US (part number 39473010) is a gray TSP143IV thermal receipt printer from Star's TSP100IV series with USB-C and Ethernet (LAN) connectivity, CloudPRNT support, a guillotine auto-cutter and an internal power supply. OpenTable lists the TSP143IVUE as a supported Ethernet chit printer for the OpenTable for Restaurants iPad app, so it suits restaurants that print guest chits over their network from one or more iPads.
Key features
- USB and LAN dual interface: USB-C and Ethernet (LAN), a USB external device connection for items such as a digital display or scanner, and Android Open Accessory (AOA) support.
- OpenTable chit printing over Ethernet: several iPads can print to the same Ethernet printer.
- Fast direct thermal printing: 250 mm per second at 203 dpi.
- CloudPRNT: Star lists CloudPRNT for this part number and notes that CloudPRNT Next on TSP143IV UE models requires updated firmware.
- Compact footprint: about 20% smaller than the TSP143III, for desktop use or vertical wall mounting.
- Drop-In and Print paper loading with a guillotine auto-cutter (partial cut).
- Peripheral connection for a cash drawer, buzzer or mC-Sound.
Specifications
| Manufacturer part number | 39473010 (TSP143IVUE GRY US) |
|---|---|
| Series | TSP100IV (TSP143IV) |
| Print method | Direct line thermal |
| Print speed | 250 mm/sec |
| Resolution | 203 dpi (8 dots/mm) |
| Paper width | 80 mm standard; 58 mm with paper guide |
| Paper roll diameter | Up to 83 mm |
| Auto-cutter | Guillotine (partial cut only) |
| Connectivity | USB/LAN dual interface (USB-C and USB-A), Android Open Accessory (AOA), CloudPRNT |
| Emulation | Star Graphics Mode / StarPRNT |
| Power supply | Internal |
| Dimensions (W x H x D) | 140 x 123 x 169 mm |
| Weight | 1.3 kg |
| Reliability | MCBF 60 million lines; print head 100 km; auto-cutter 2 million cuts |
| Color | Gray |
What's in the box
Star lists a power cable, LAN cable, USB cable, paper guide, rubber feet, safety instructions and an easy setup guide for the TSP143IVUE.
Typical applications
- Guest chit printing from the OpenTable for Restaurants iPad app over Ethernet
- A kitchen chit printer where the chef reviews guest notes such as allergies, one of OpenTable's Ethernet printer examples
- One network printer shared by several iPads on the same network
- Cloud-based order printing from applications that use CloudPRNT
Compatibility
OpenTable lists the TSP143IVUE under supported Ethernet printers and states that its listed configurations and printers are the only ones supported; the printer and the iPads running OpenTable must be on the same network. For other software, Star lists Windows, OPOS, JavaPOS and CUPS drivers plus the StarPRNT and StarXpand SDKs.
Frequently asked questions
Is the Star TSP143IVUE supported by OpenTable?
Yes. OpenTable's chit printer setup article lists the TSP143IVUE under supported Ethernet printers for the OpenTable for Restaurants iPad app.
Can I connect this printer to OpenTable by USB-C instead of Ethernet?
OpenTable lists the TSP143IVUE only under Ethernet printers; the models on its supported USB printer list are different. For OpenTable, connect the printer by Ethernet cable to a network the iPads share.
What is CloudPRNT?
CloudPRNT is Star's cloud printing technology. Star describes CloudPRNT Next as using the MQTT protocol so orders and print jobs can be delivered directly from cloud platforms without a local tablet, PC or middleware device. Star notes that CloudPRNT Next on TSP143IV UE models requires updated firmware.
What is the difference between the TSP143IVUE and the TSP143IV X4?
The TSP143IVUE (39473010) has USB and LAN connectivity. TSP143IV X4 models add WLAN and Bluetooth for four interfaces: USB, LAN, WLAN and Bluetooth.
What paper does the TSP143IV use?
80 mm direct thermal paper as standard, or 58 mm with the paper guide, on rolls up to 83 mm in diameter. Star lists Star Blue Eco 80 mm x 230 ft rolls for the TSP143IV (37951740, 25 rolls; 37951750, 50 rolls).
