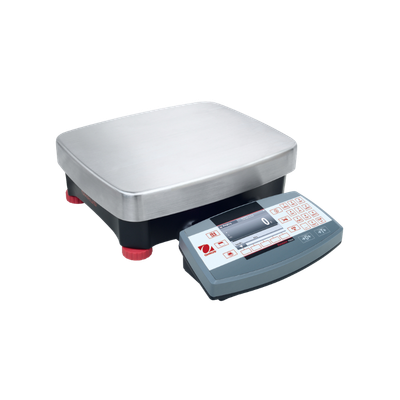

OHAUS, Ranger 7000 Industrial Compact Bench Scale

Models: R71MD35, R71MD60

The Ohaus Ranger 7000 Series is a premium line of industrial compact bench scales designed for advanced weighing applications requiring exceptional precision, speed, durability, and connectivity. Built for demanding industrial, manufacturing, logistics, packaging, and laboratory environments, the Ranger 7000 combines high-resolution weighing with intelligent application modes and rugged construction.

The Ranger 7000 series delivers rapid stabilization, advanced data management, and extensive connectivity options, making it one of the most capable compact industrial scales in the Ohaus portfolio.

Key Features

• Fast one-second stabilization time for increased productivity
• High-resolution weighing up to 350,000 display divisions
• Large 4.3-inch TFT graphic color display with intuitive menu navigation
• Rugged die-cast metal housing with stainless steel platform
• IP54-rated protection against dust and water splashes
• Ten advanced application modes including:
• Weighing
• Parts counting
• Checkweighing
• Check counting
• Percent weighing
• Filling
• Formulation
• Dynamic/animal weighing
• Density determination
• Sieve analysis
• Internal memory for storing:
• 300 items for counting/checkweighing/filling
• 30 formulations
• Standard RS232 and USB interfaces
• Optional Ethernet, second RS232, and digital I/O connectivity
• NTEP certified and Measurement Canada approved models available
• Optional rechargeable battery operation
• Remote base and peripheral device control capability

Model Specifications

Common Technical Specifications

• Display: 4.3" TFT graphic LCD
• Platform Size: 311 × 377 mm
• Construction: Die-cast metal housing with stainless steel platform
• Protection Rating: IP54
• Power: AC adapter standard; optional rechargeable battery
• Battery Life: Up to 12 hours with rechargeable battery
• Operating Temperature: -10°C to 40°C (14°F to 104°F)
• Units of Measure: g, kg, oz, lb, lb:oz, custom units
• Connectivity: RS232 and USB standard; optional Ethernet and digital I/O
• Functions: Auto-tare, auto-print, chain tare, selectable environmental settings
• Compliance: NTEP, Measurement Canada, OIML certified models available

Typical Applications

The Ranger 7000 series is ideal for:

• Industrial manufacturing
• Packaging and filling operations
• Shipping and receiving
• Warehouse inventory management
• Quality assurance and inspection
• Heavy-duty production environments
• Advanced counting and formulation applications
• Process control systems

Individual Model Overview

R71MD35

The R71MD35 is a high-capacity precision bench scale offering 35 kg / 70 lb capacity with exceptional readability for detailed industrial weighing and counting tasks. Its rugged construction and advanced application modes make it ideal for manufacturing, formulation, and quality control operations.

R71MD60

The R71MD60 is designed for heavier-duty industrial applications requiring increased capacity while maintaining excellent precision and fast performance. Ideal for shipping, warehouse operations, and industrial production environments.
