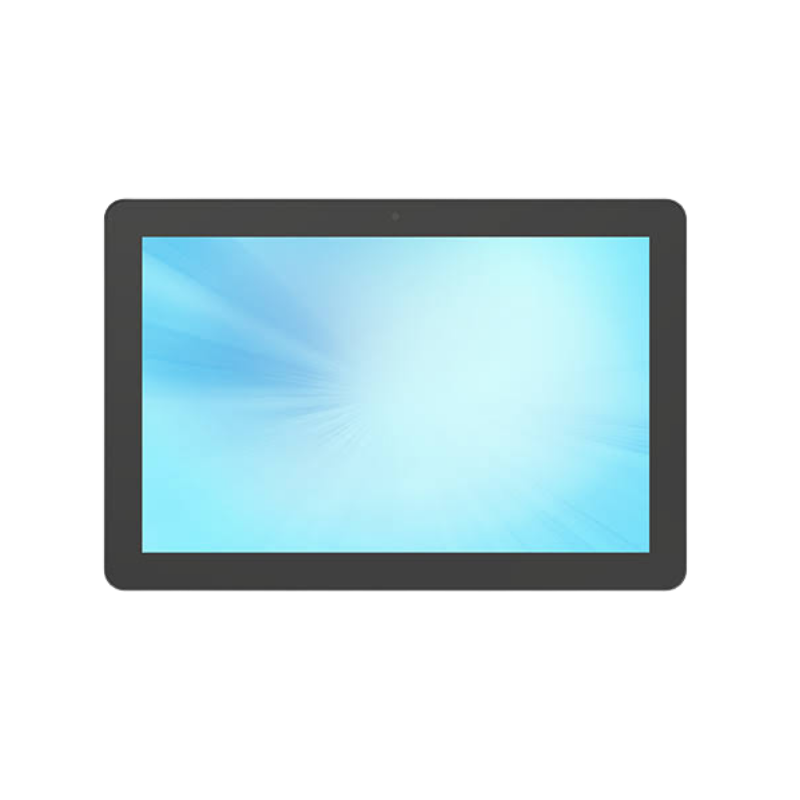

MicroTouch M1-101IC-AA3 10.1" Android All-in-One Touch Computer
MicroTouch M1-101IC-AA3 10.1" Android All-in-One Touch Computer
SKU:M1-101IC-AA3
MicroTouch M1-101IC-AA3 10.1" Android All-in-One Touch Computer
The MicroTouch Mach M1-101IC-AA3 is a commercial-grade 10.1-inch Android all-in-one touch computer designed for retail, hospitality, self-service, kiosk and other interactive applications. Powered by the MediaTek Genio 700 (MT8390) processor, it combines an Android computing platform with a compact 10-point projected-capacitive touchscreen.
Quick Answer
The M1-101IC-AA3 features a 10.1-inch 1280 × 800 display, MediaTek Genio 700 processor, 8GB system memory, 64GB eMMC storage, Android 13 GMS, Gigabit Ethernet with PoE, Wi-Fi and Bluetooth. Its optically bonded PCAP display uses an etched anti-glare surface to improve clarity and viewing while reducing reflections and fingerprints.
Best For
- Retail POS and customer-facing applications
- Restaurant and hospitality systems
- Self-service and interactive kiosks
- Information and check-in terminals
- Commercial Android applications
- Compact touchscreen installations requiring Ethernet, PoE or wireless connectivity
Key Features
- 10.1" TFT LCD: Compact 1280 × 800 touchscreen display with a 16:10 aspect ratio.
- 10-Point PCAP Touch: Projected-capacitive touchscreen with optical bonding and etched anti-glare treatment.
- MediaTek Genio 700: MT8390 processor with Mali-G57 MC3 graphics.
- Android Platform: Android 13 GMS, with MicroTouch listing upgradeability to Android 15 GMS.
- 8GB RAM / 64GB eMMC: Commercial Android computing configuration for interactive applications.
- Flexible Networking: Gigabit Ethernet, Wi-Fi 802.11 a/b/g/n/ac/ax and Bluetooth 5.2 with BLE support.
- PoE Support: Power over Ethernet is included, supporting streamlined commercial installations.
- Commercial Construction: Front panel is IP65 compliant and the unit carries a 3-year warranty.
Technical Specifications
| Brand | MicroTouch |
| Model / SKU | M1-101IC-AA3 |
| Product Type | Android All-in-One Touch Computer |
| Display | 10.1" TFT LCD |
| Resolution | 1280 × 800 |
| Aspect Ratio | 16:10 |
| Contrast Ratio | 900:1 |
| Brightness | 400 nits without touch / 360 nits with PCAP |
| Viewing Angle | 170° horizontal / 170° vertical |
| Touch Technology | Projected Capacitive, 10-point touch |
| Surface Treatment | Etched anti-glare, optically bonded |
| Glass Hardness | 7H |
| Processor | MediaTek Genio 700 (MT8390) |
| Graphics | Mali-G57 MC3 |
| Memory | 8GB |
| Storage | 64GB eMMC |
| Operating System | Android 13 GMS; MicroTouch lists upgradeability to Android 15 GMS |
| Ethernet | 1 × RJ45 Gigabit LAN |
| Wi-Fi | 802.11 a/b/g/n/ac/ax |
| Bluetooth | Bluetooth 5.2, BLE supported |
| USB | 2 × USB-C USB 3.0 with PD/DP Alt Mode; 1 × USB-A USB 3.0; 3 × USB-C USB 2.0 peripheral connections |
| Audio | 3.5 mm audio output / microphone input; integrated 2W stereo speaker |
| Power Input | 12V DC |
| PoE | Included, 60W/90W |
| Camera | 5MP front-facing camera |
| VESA | 75 × 75 mm |
| Front Protection | IP65 compliant |
| Dimensions | 255.8 × 169.4 × 34.5 mm without stand |
| Net Weight | 1 kg |
| Warranty | 3 years |
Optional Smart Peripherals
The Mach platform supports optional peripherals that can expand the system for specialized workflows, including a 2D barcode scanner, multi-color LED status bar, camera and magnetic-stripe reader.
- MA-SCAN-A1: Barcode scanner
- MA-LBAR-A1: Multi-color light bar
- MA-CAM-A1: Camera module
- MA-MSR-A1: Magnetic-stripe reader
Commercial Touchscreen Design
The M1-101IC-AA3 combines commercial-grade construction with a compact all-in-one form factor. Its optically bonded display and etched anti-glare surface are designed to improve screen clarity and viewing angles while reducing distracting reflections and fingerprints in customer-facing environments.
The system supports portrait, landscape and tabletop orientations and uses a 75 × 75 mm VESA mounting pattern for compatible mounting solutions.
Connectivity and Expansion
Gigabit Ethernet with PoE, Wi-Fi and Bluetooth provide flexible deployment options. USB-A and USB-C connectivity supports peripherals and expansion, while dedicated USB-C peripheral connections help integrate supported MicroTouch accessories.
Compatibility Guidance
Compatibility depends on your POS or business software, Android application requirements, network configuration, peripherals, mounting hardware and accessories. Confirm compatibility before ordering.
For POS, kiosk or self-service deployments, verify that your software supports Android 13 GMS and that any required scanner, MSR, camera, stand, mount or other peripheral is compatible with the intended configuration.
Frequently Asked Questions
What is the M1-101IC-AA3?
It is a 10.1-inch commercial Android all-in-one touch computer powered by the MediaTek Genio 700 processor with 8GB RAM, 64GB eMMC storage and a 10-point projected-capacitive touchscreen.
Does the M1-101IC-AA3 support Wi-Fi and Bluetooth?
Yes. MicroTouch specifies 802.11 a/b/g/n/ac/ax Wi-Fi and Bluetooth 5.2 with BLE support.
Does it support wired Ethernet and PoE?
Yes. It includes an RJ45 Gigabit LAN connection and PoE support.
What operating system does it use?
MicroTouch specifies Android 13 GMS and lists the platform as upgradeable to Android 15 GMS.
Can optional peripherals be added?
Yes. MicroTouch lists optional barcode scanner, LED light bar, camera and MSR accessories for the platform.
Can it be VESA mounted?
Yes. The unit supports a 75 × 75 mm VESA mounting pattern.
