Custom America Ascent 15.6" Standard POS Terminal, Intel Celeron J6412, 8GB RAM, 128GB SSD, Wi-Fi, Bluetooth
Custom America Ascent 15.6" Standard POS Terminal, Intel Celeron J6412, 8GB RAM, 128GB SSD, Wi-Fi, Bluetooth
SKU:935KY461C00L33
The Custom America Ascent 15.6 is a POS terminal with a 15.6-inch Full HD True-Flat PCAP multi-touch display for retail, restaurant, supermarket and convenience store counters. This listing covers the Ascent 15.6 Standard model with an Intel Celeron J6412 processor, 8GB of RAM, a 128GB SSD, Wi-Fi and Bluetooth, in two versions: 935KY461C00L33 with Windows 11 IoT and 935KY460500L33 with Windows 11 Pro.
Key features

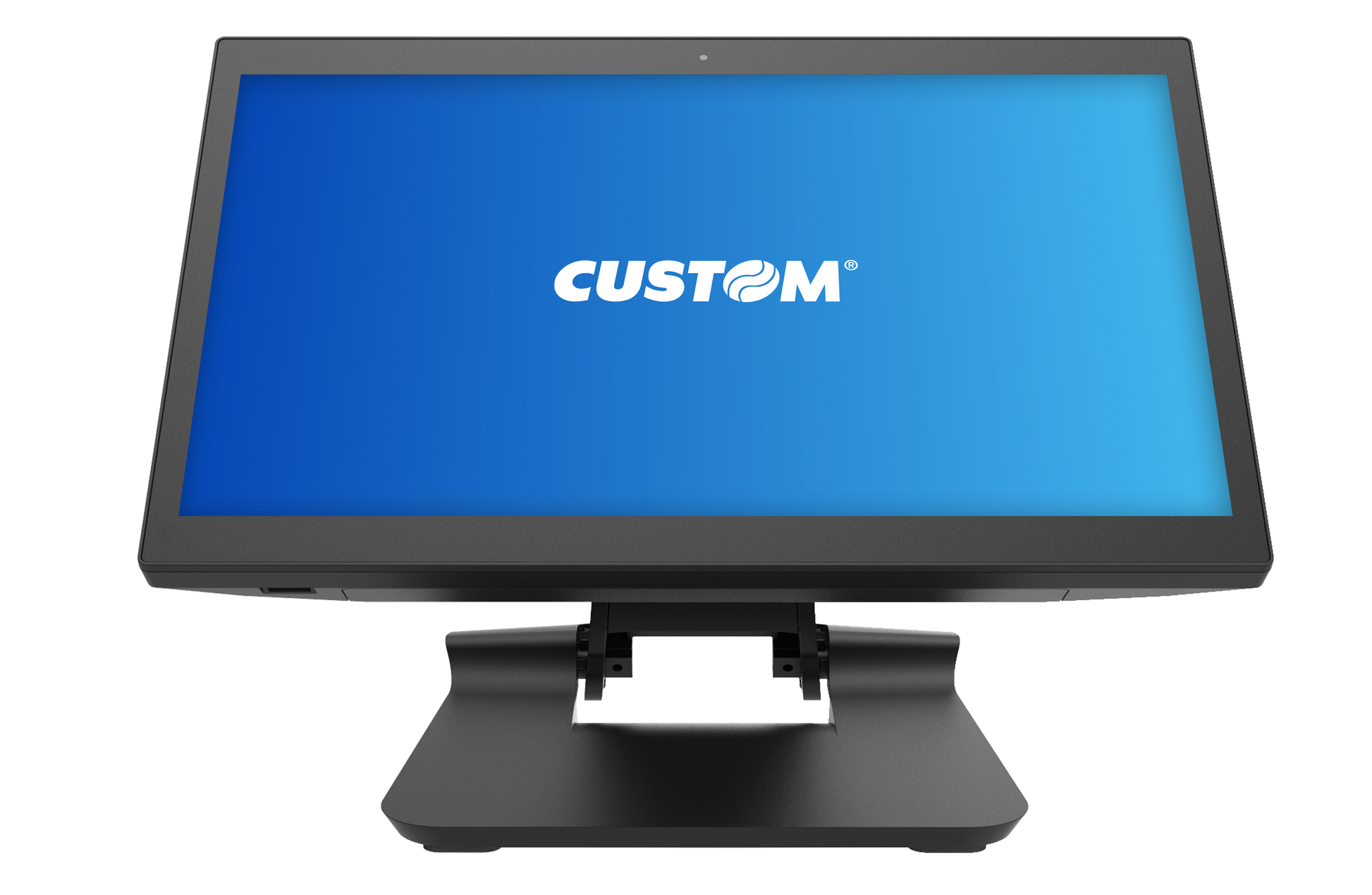

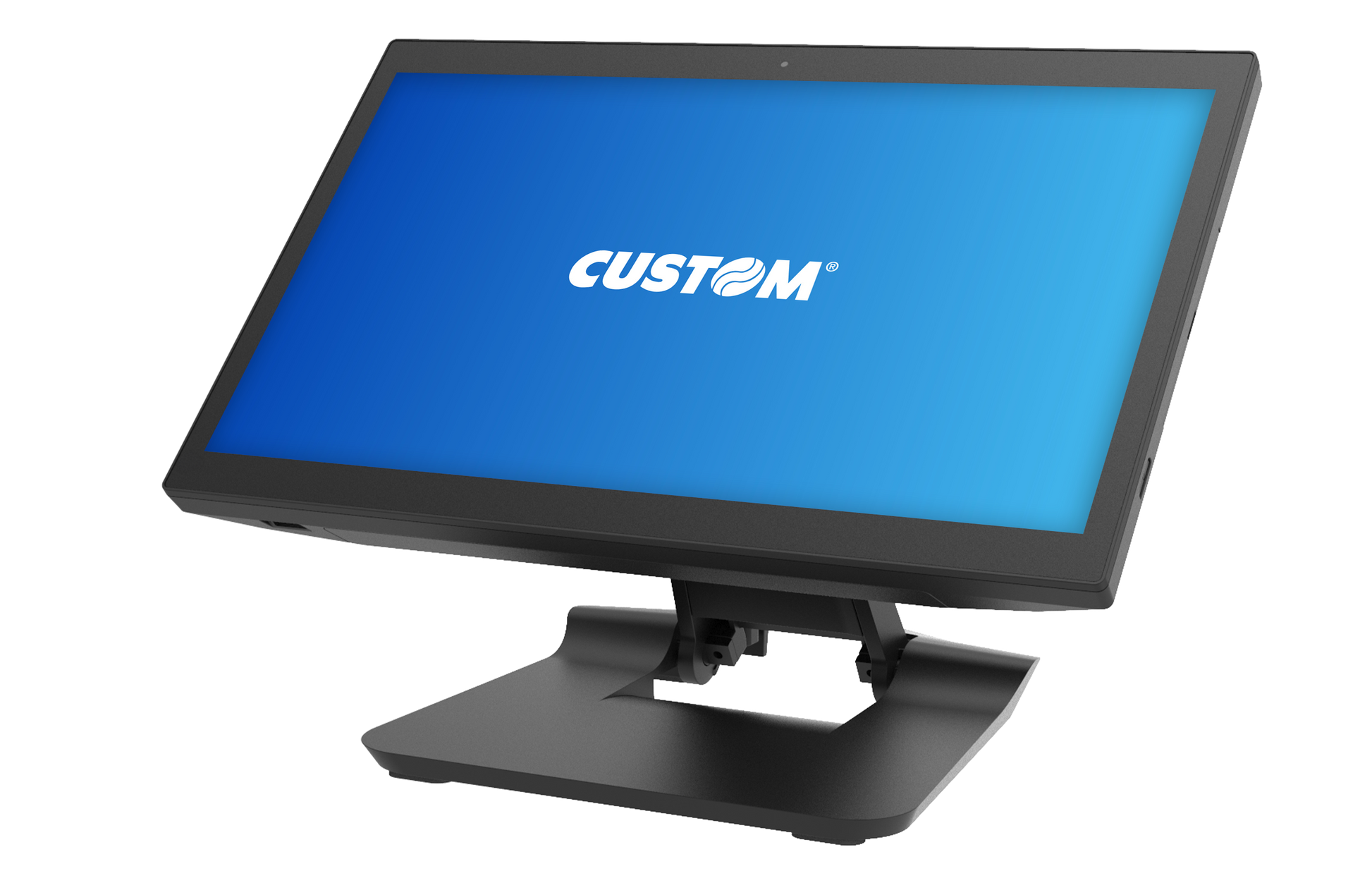

- 15.6-inch Full HD touchscreen: 1920 x 1080 True-Flat PCAP multi-touch display with 500-nit brightness.
- Intel Celeron J6412 platform: 8GB DDR4 memory, a 128GB M.2 SSD and a TPM 2.0 module.
- Landscape or portrait: Custom states the low-profile, angular Ascent can be oriented either way.

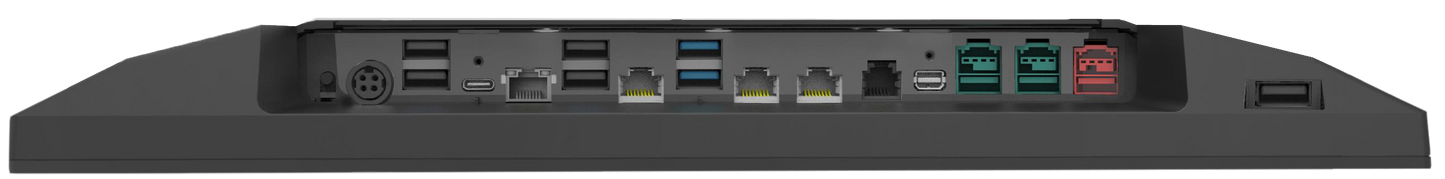

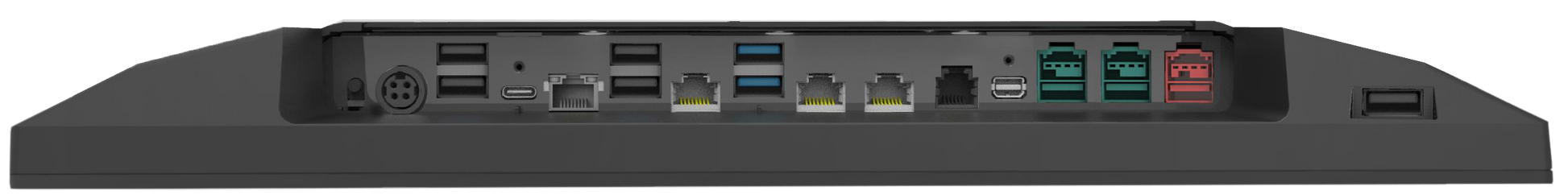

- Retail I/O: three RJ48 serial ports (with two RJ48-to-DB9 cables), RJ45 Ethernet, RJ11, USB-C 3.0, a CuDP video port and seven USB-A ports, including one on the front.
- Service-friendly design: easy access to the memory and storage compartments and a technician-friendly front USB port.
- Bezel-mounted peripheral options: add device functions to the display bezel as your needs change.
Specifications
| Model | Ascent 15.6 Standard, Celeron |
|---|---|
| Part numbers | 935KY461C00L33 (Windows 11 IoT), 935KY460500L33 (Windows 11 Pro) |
| Processor | Intel Celeron J6412 |
| Memory | 8GB DDR4 |
| Storage | 128GB M.2 SSD |
| Display | 15.6 in, 1920 x 1080, 500 nits |
| Touch | True-Flat PCAP multi-touch |
| I/O | 1x USB-A 2.0 (front), 2x USB-A 3.0, 4x USB-A 2.0, 1x USB-C 3.0, 3x RJ48 (with 2x RJ48 to DB9 cables), 1x RJ45, 1x RJ11, 1x CuDP, 1x 4-pin power (with latch) |
| Wireless | Wi-Fi, Bluetooth |
| Security | TPM 2.0 |
| Speaker | 1x 3W |
| Power supply | 65W / 19V |
| Dimensions | 368 mm W x 265 mm H x 233 mm D (with collapsible stand) |
| Weight | 3.5 kg (stand and screen) |
| VESA mount | 100 x 100 mm |
| Operating temperature | 0°C to 35°C (32°F to 95°F) |
Typical applications
- Retail, grocery and convenience store checkout
- Restaurant and hospitality point of sale
- Entertainment, gaming, lottery and betting counters
- Parking operations
Frequently asked questions
What is the difference between 935KY461C00L33 and 935KY460500L33?
Custom's model list describes both as the Ascent 15.6 Standard with an Intel Celeron processor, 8GB of RAM and 128GB of storage. They differ in operating system: 935KY461C00L33 runs Windows 11 IoT and 935KY460500L33 runs Windows 11 Pro.
What accessories are available for the Custom America Ascent POS system?
Custom lists an 11.6-inch touch second display, an LCM customer display, a fingerprint reader, a 3-track MSR, an iButton and a CuDP to HDMI adapter as Ascent 15.6 accessories.
Can the Ascent be used in portrait orientation?
Yes. Custom states the Ascent can be oriented in landscape or portrait.
Can the Ascent be mounted instead of using its stand?
Custom lists a 100 x 100 mm VESA mount for the Ascent 15.6. With its collapsible stand, the terminal measures 368 x 265 x 233 mm and weighs 3.5 kg.
Which serial and network ports does this Ascent model have?
The Standard Celeron model has three RJ48 serial ports with two RJ48-to-DB9 cables, one RJ45 Ethernet port, one RJ11 port and a USB-C 3.0 port, along with Wi-Fi and Bluetooth.
