Zebra DS2208 Corded 1D/2D Scanner USB Kit: DS2208-SR00007ZZWW with CBA-U21-S07ZBR Cable, Black (DS2208-SR7U2100AZW)
Zebra DS2208 Corded 1D/2D Scanner USB Kit: DS2208-SR00007ZZWW with CBA-U21-S07ZBR Cable, Black (DS2208-SR7U2100AZW)
SKU:DS2208-SR7U2100AZW

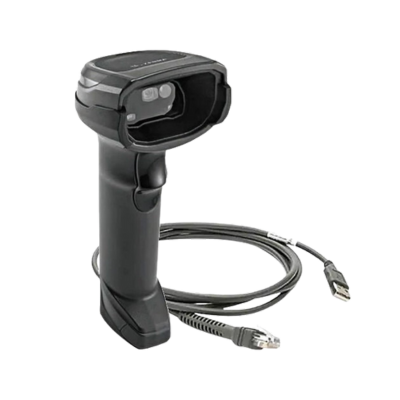

The Zebra DS2208-SR7U2100AZW is Zebra's black USB kit for the DS2208 corded barcode scanner from the DS2200 Series. It pairs the DS2208-SR00007ZZWW standard-range 1D/2D area imager with the CBA-U21-S07ZBR shielded USB cable, so the scanner is ready to plug into a USB host for point-of-sale and general scanning.
Key features
- 1D and 2D scanning: decodes common 1D barcodes plus 2D codes such as QR Code, Data Matrix, PDF417 and Aztec.
- Phone screens: Zebra states that reading barcodes on mobile phones does not require a special mode of operation.
- Automatic host detection: the scanner detects a USB host and uses USB Keyboard HID by default; other interface types can be set with programming barcodes.
- Shielded USB cable included: Zebra notes that shielded cables provide improved ESD performance.
- Host powered: runs on 4.5 to 5.5 VDC from the host; an external power supply is needed only if the host does not provide power.
- Configuration tools: Zebra 123Scan programs scanner settings and upgrades firmware, and Scanner Management Service (SMS) supports remote management.
Specifications
| Manufacturer part number | DS2208-SR7U2100AZW |
|---|---|
| Kit components | DS2208-SR00007ZZWW scanner, CBA-U21-S07ZBR shielded USB cable |
| Series / model | Zebra DS2200 Series / DS2208 corded |
| Scanner type | Area imager, standard range, 1D/2D |
| Image sensor / field of view | 640 x 480 pixels / 32.8° H x 24.8° V nominal |
| Typical decode range | 13 mil UPC: 0.5 to 14.5 in; 20 mil QR: 0 to 11 in; 10 mil Data Matrix: 0.3 to 6.2 in; 5 mil Code 39: 0.2 to 6.0 in |
| Motion tolerance | Handheld: up to 5 in per second; hands-free swipe: up to 30 in per second (13 mil UPC) |
| Host interfaces | USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 (this kit includes a USB cable) |
| Input voltage / current | 4.5 to 5.5 VDC / 250 mA typical operating |
| Dimensions / weight | 6.5 in H x 2.6 in W x 3.9 in D / 5.7 oz (161.6 g) |
| Color | Twilight Black |
| Operating temperature | 32 to 122°F (0 to 50°C) |
| Sealing / drop | IP52 / designed to withstand multiple 5 ft (1.5 m) drops to concrete |
What's in the box
- Zebra DS2208-SR00007ZZWW corded area imager, standard range, Twilight Black
- Zebra CBA-U21-S07ZBR shielded USB cable: Series A connector, 7 ft (2.1 m), straight, BC1.2
Typical applications
- Retail point of sale, loyalty programs and electronic coupon redemption
- Hospitality check-in and ticketing
- Back-of-store shipping, receiving and product tracking
Compatibility
With the included cable, the DS2208 connects as a USB Keyboard HID device by default. Zebra 123Scan runs on Windows 7, 8, 10 and 11, and Zebra offers scanner SDKs for Windows, Android, iOS and Linux.
Frequently asked questions
Is DS2208-SR7U2100AZW the same as DS2208-SR00007ZZWW?
Not exactly. DS2208-SR00007ZZWW is the scanner itself (area imager, standard range, corded, Twilight Black). DS2208-SR7U2100AZW is Zebra's black USB kit that adds the CBA-U21-S07ZBR shielded USB cable. Zebra's product reference guide notes that the interface cable is ordered separately when you buy the scanner alone.
What is the CBA-U21-S07ZBR cable?
It is a Zebra shielded USB cable with a Series A connector, 7 ft (2.1 m) long and straight, with BC1.2 support. It differs from the CBA-U23-S07ZBR, which Zebra lists as a shielded USB cable with a Power Plus connector (12V).
Does this kit include a stand?
No stand is listed in Zebra's description of this kit, which covers the scanner and the USB cable. Zebra sells the Gooseneck Intellistand (for example part 20-71043-04R) separately for hands-free use.
Can it read QR codes and barcodes on phone screens?
Yes. The DS2208 decodes QR Code, Micro QR, Data Matrix, PDF417, Aztec and other 2D symbologies, and no special mode is needed to read barcodes on mobile phones.
Can I reuse the cable from an older Zebra LS2208?
Zebra states that existing non-shielded cables from legacy products such as the LS2208 can be reused, but shielded cables like the included CBA-U21-S07ZBR provide improved ESD performance.
