Star Micronics

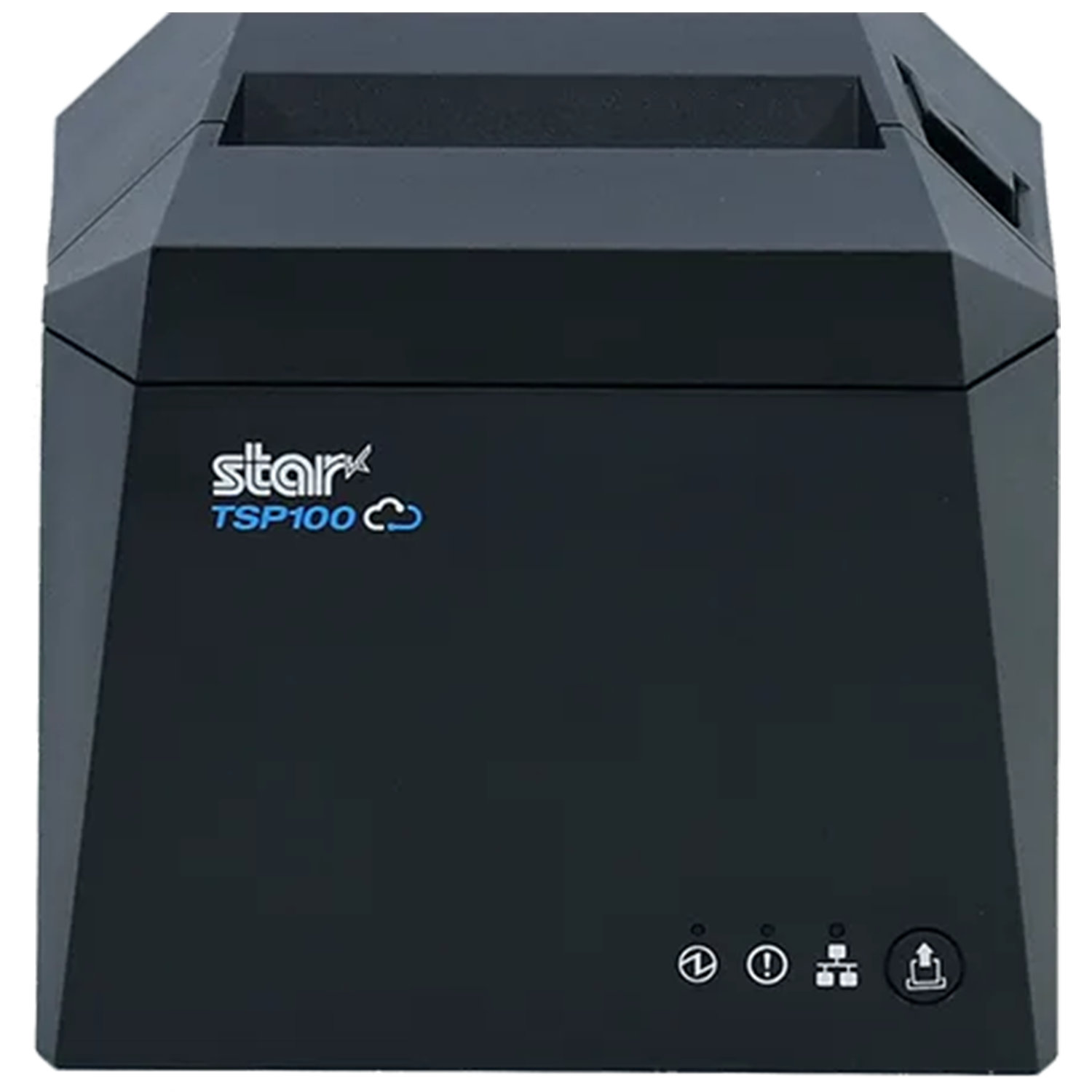

39473810 TSP143IV UEWB GY US TSP100IV X4 Thermal Receipt Printer, Gray
39473810 TSP143IV UEWB GY US TSP100IV X4 Thermal Receipt Printer, Gray
SKU:39473810
One compact receipt printer with USB-C, Ethernet LAN, dual-band Wi-Fi, Bluetooth, CloudPRNT Next, Android Open Accessory support, auto cutter, and an internal power supply. The gray Star Micronics TSP143IV X4 is built for modern retail, restaurant, hospitality, mobile POS, and cloud-connected checkout environments.
Why Buy the Star Micronics 39473810 TSP143IV X4?
The Star Micronics 39473810 combines four major POS connectivity methods in a single POS receipt printer. Instead of selecting separate USB, network, Wi-Fi, or Bluetooth printer configurations, the TSP143IV X4 gives supported POS installations multiple connection options from one printer platform.
That flexibility makes the TSP143IV useful when a business is replacing an older receipt printer, changing POS software, moving from a traditional workstation to a tablet POS system, adding cloud-based ordering, or standardizing receipt printers across multiple checkout environments.
Four Interfaces in One Printer
USB-C, Ethernet LAN, WLAN, and Bluetooth give supported POS systems several ways to communicate with the same printer. This can simplify purchasing and deployment when stores use different workstation or network configurations.
Built for Modern POS
The TSP143IV platform supports Windows, iOS, Android, mobile POS, cloud-connected applications, and other compatible retail and hospitality environments. Application support still needs to be confirmed before ordering.
Fast Thermal Receipt Printing
Print speeds up to 250 mm/sec help keep receipts moving at retail counters, restaurants, hospitality stations, service businesses, and other transaction-heavy environments.
Compact Countertop Design
The TSP143IV has a footprint approximately 20% smaller than the previous TSP143III generation, helping businesses conserve checkout counter space.
Best For
- Retail POS checkout counters
- Restaurant point-of-sale stations
- Quick-service restaurant and hospitality environments
- iPad and tablet-based POS systems when supported by the POS application
- Android-based POS deployments
- Windows POS workstations
- Ethernet network receipt printing
- Wi-Fi receipt printer installations
- Bluetooth-compatible mobile POS workflows
- Cloud-based POS and online-order printing using compatible CloudPRNT applications
- Businesses replacing compatible older Star TSP100-series printers
- Multi-location businesses standardizing around a flexible receipt printer platform
Star Micronics TSP143IV 39473810 Technical Specifications
| Brand | Star Micronics |
|---|---|
| Manufacturer Part Number | 39473810 |
| Model | TSP143IVUEWB GY US |
| Series | TSP100IV X4 / TSP143IV X4 |
| Printer Type | Direct thermal POS receipt printer |
| Color | Gray |
| Print Speed | Up to 250 mm/sec |
| Print Resolution | 203 dpi / 8 dots per mm |
| Connectivity | USB-C, Ethernet LAN, WLAN, Bluetooth |
| Wireless Network Support | 2.4 GHz and 5 GHz WLAN |
| Cloud Printing | CloudPRNT Next support for compatible cloud applications |
| Android Support | Android Open Accessory (AOA) protocol support |
| Standard Paper Width | 80mm |
| Optional Paper Width | 58mm using the paper guide |
| Maximum Paper Roll Diameter | Up to 83mm |
| Maximum Print Width | 72mm on 80mm paper; 50.8mm on 58mm paper |
| Paper Loading | Drop-in thermal paper loading |
| Auto Cutter | Guillotine cutter, partial cut |
| Dimensions | 140 × 123 × 169 mm (W × H × D) |
| Weight | Approximately 1.3 kg |
| MCBF | 60 million lines |
| Print Head Life | 100 km |
| Cutter Life | 2 million cuts |
| Power Supply | Internal power supply |
| Energy Rating | ENERGY STAR approved |
| Standard Warranty | 2 years, subject to Star Micronics warranty terms and regional conditions |
USB-C, Ethernet, Wi-Fi and Bluetooth Receipt Printing
The Star Micronics TSP143IV X4 is designed for businesses that do not want to be locked into a single connection type.
USB-C
USB-C provides a direct wired connection for supported POS devices and applications. Android Open Accessory support can allow compatible Android devices to communicate with the printer while receiving power through the USB-C connection.
Ethernet LAN
Ethernet is a strong choice for fixed POS installations where stable network connectivity is preferred. Network printing can also make it easier to position a receipt printer where a direct USB connection is not practical.
Dual-Band WLAN
The X4 supports both 2.4 GHz and 5 GHz wireless networks. Wi-Fi can be useful when Ethernet cabling is unavailable or when a business needs greater flexibility in printer placement.
Bluetooth
Bluetooth provides another wireless connection option for compatible POS software, tablets, mobile devices, and applications. Bluetooth compatibility depends on the operating system and the POS application being used.
CloudPRNT Next for Cloud-Based POS Printing
The TSP143IV supports Star Micronics CloudPRNT Next technology. With a compatible application, CloudPRNT Next can allow print jobs such as receipts or online orders to be delivered from a cloud platform to the printer without relying solely on a conventional locally installed print-driver workflow.
This makes the TSP143IV worth considering for cloud POS, web-based ordering, restaurant ordering, remote printing, multi-location environments, and other applications specifically designed to support Star CloudPRNT technology.
Android Open Accessory Support
Android Open Accessory, commonly called AOA, is especially useful for supported Android POS configurations. It can provide communication between a compatible Android device and the printer over USB-C while also helping reduce the number of separate cables and power connections required at the checkout station.
AOA support is a printer capability. Your Android hardware, software, application, cabling, and configuration must also support the intended workflow.
80mm and 58mm Thermal Receipt Paper
The Star Micronics 39473810 is designed around standard 80mm thermal receipt paper and can also use 58mm paper with the supplied paper guide. Maximum supported roll diameter is approximately 83mm.
For most retail, restaurant, and hospitality applications, 80mm thermal paper provides the familiar full-width POS receipt format. Businesses that need narrower receipts can configure the printer for compatible 58mm media.
39473810 vs. 37952440: Which TSP143IV X4 Do I Need?
This Listing: Star Micronics 39473810
39473810 is the gray TSP143IVUEWB GY US TSP100IV X4 with USB-C, Ethernet LAN, WLAN, Bluetooth, CloudPRNT, Android Open Accessory support, auto cutter, USB cable, and internal power supply.
Star also offers 37952440, a gray TSP143IV X4 configuration specifically identified by Star as including ESC/POS emulation.
Do not assume the two part numbers are interchangeable. If your POS software requires ESC/POS emulation, verify the required printer configuration before purchasing.
Replacing an Older Star TSP100 or TSP100III Printer?
The TSP143IV is the fourth-generation platform in Star's TSP100 family and is designed as an upgrade path from previous TSP100-series installations. Its smaller footprint, modern connectivity, cloud capabilities, and mobile-device support can make it a practical replacement when updating older checkout hardware.
However, replacing an older Star printer is not always as simple as matching the physical printer family. POS software may require a particular interface, driver, emulation mode, firmware version, device type, or certified printer model.
What's Included
- Star Micronics TSP143IV X4 gray thermal receipt printer
- Internal power supply
- Power cable
- USB cable
- Paper guide
- Rubber feet
- Safety documentation
- Setup documentation
Contents can be revised by the manufacturer. Verify package contents if a specific cable, mounting component, accessory, or installation item is critical to your deployment.
Reliability for Commercial POS Environments
A receipt printer is often one of the most heavily used devices at a checkout station. Star rates the TSP143IV platform for an MCBF of 60 million lines, print-head life of 100 km, and auto-cutter life of 2 million cuts.
Those commercial-duty specifications make the TSP143IV appropriate for businesses that need a dedicated POS receipt printer for everyday transaction printing rather than a light-duty general-purpose printer.
Use It With a Complete POS Hardware Setup
The receipt printer is only one part of a reliable checkout system. Depending on your application, you may also need a compatible cash drawer, barcode scanner, thermal receipt paper, network equipment, cables, or other POS hardware.
Compatibility Notes
Compatibility can also depend on the exact Star printer part number, emulation mode, firmware, mobile device, network configuration, POS application, cloud-printing requirements, Bluetooth implementation, USB connection, receipt width, and any peripherals connected to the printer.
Do not purchase based only on the words USB, Ethernet, Wi-Fi, Bluetooth, iPad, Android, Windows, CloudPRNT, or TSP100. Your POS software ultimately determines which printer models and connection methods it supports.
Not Sure If 39473810 Is the Right Printer?
Need help choosing compatible POS hardware? Chat with ShopPOS Portals before ordering. Send us your POS software name, current printer model, preferred connection type, and any replacement model information you have.
Ask About CompatibilityCommon Buying Mistakes to Avoid
- Ordering by appearance alone: Similar-looking Star printers can have different interfaces and emulation modes.
- Assuming every TSP143IV is identical: Star offers different TSP143IV configurations and part numbers.
- Assuming Bluetooth guarantees tablet compatibility: Your POS application must support the printer and connection method.
- Assuming CloudPRNT works with every cloud POS system: The application must specifically support the required Star cloud-printing workflow.
- Confusing 39473810 with the ESC/POS model: The gray ESC/POS X4 configuration is a different Star part number.
- Ignoring receipt paper requirements: Confirm the width, diameter, and thermal media required for your installation.
- Replacing an old printer without checking software support: Verify the exact replacement model and interface before ordering.
Frequently Asked Questions
What is the Star Micronics 39473810?
The Star Micronics 39473810 is the gray TSP143IVUEWB GY US, also described as a TSP100IV X4 thermal receipt printer. It includes USB-C, Ethernet LAN, WLAN, Bluetooth, CloudPRNT support, Android Open Accessory support, auto cutter, internal power supply, and USB cable.
Does the Star TSP143IV 39473810 have Bluetooth?
Yes. Part number 39473810 is an X4 configuration that includes Bluetooth along with USB-C, Ethernet LAN, and WLAN. Your POS application must also support the selected Bluetooth printing workflow.
Does the TSP143IV 39473810 have Wi-Fi?
Yes. This X4 configuration includes WLAN and supports both 2.4 GHz and 5 GHz wireless networks.
Does the Star 39473810 have Ethernet?
Yes. Ethernet LAN is included along with USB-C, Wi-Fi, and Bluetooth.
What size receipt paper does the TSP143IV use?
The printer uses 80mm thermal receipt paper as its standard width and can use 58mm paper with the appropriate paper guide. The maximum roll diameter is approximately 83mm.
How fast does the Star TSP143IV print?
The TSP143IV is rated for print speeds up to 250 mm per second.
What is the TSP143IV print resolution?
The printer has a resolution of 203 dpi, or 8 dots per millimeter.
Does the TSP143IV work with iPad or iOS?
The TSP143IV platform supports iOS environments, but your specific POS application must support the exact printer model and intended connection method. Confirm compatibility before ordering.
Does the TSP143IV work with Android POS systems?
The printer supports Android environments and Android Open Accessory technology. Actual compatibility depends on the Android device, POS application, interface, cabling, drivers or SDK implementation, and configuration.
Can the Star TSP143IV print cloud orders?
It supports Star CloudPRNT Next technology, which can be used by compatible cloud POS and ordering applications. Your software provider must support the required CloudPRNT workflow.
Is the Star 39473810 an ESC/POS printer?
Do not assume so. Star identifies 39473810 as the standard gray TSP143IV X4 configuration. Star separately lists part number 37952440 as the gray X4 configuration with ESC/POS emulation. If your software specifically requires ESC/POS, confirm the required part number before ordering.
Can the TSP143IV replace a TSP100III?
The TSP143IV is designed as a newer TSP100-family platform and can be a replacement path for older installations. Compatibility still depends on your software, operating system, connection type, drivers, emulation requirements, and configuration.
Does the Star 39473810 include an auto cutter?
Yes. The printer includes a guillotine-style partial-cut auto cutter.
Does the power supply come with the printer?
The TSP143IV uses an internal power supply, helping reduce external power-brick clutter at the checkout counter.
Bottom Line
The Star Micronics 39473810 TSP143IVUEWB GY US is one of the most flexible configurations in the TSP100IV family. USB-C, Ethernet, dual-band WLAN, Bluetooth, CloudPRNT Next, Android Open Accessory support, 250 mm/sec printing, an integrated cutter, and an internal power supply make it well suited to modern retail, restaurant, hospitality, mobile POS, and cloud-connected receipt-printing environments.
If your POS software supports part number 39473810 and you want a commercial thermal receipt printer that gives you several connectivity options in one unit, this TSP143IV X4 is an excellent option. You can also browse more POS receipt printers from ShopPOS Portals.
