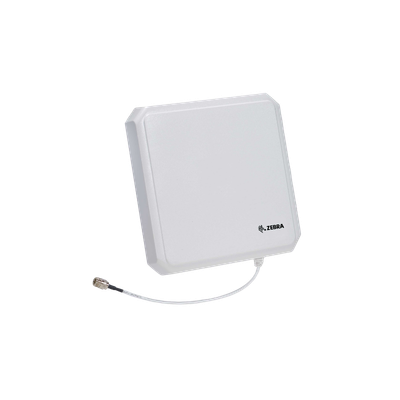

Zebra, AN480 RFID Antenna, 1-Port Wide-Band

The Zebra AN480-CL66100WR is a high-performance, single-port, wide-band RFID antenna designed for global indoor/outdoor deployment (865–956 MHz). It features a low axial ratio, providing consistent 6.0 dBiL gain for superior, uniform read coverage in warehouses, manufacturing, and dock doors.

Key Features and Specifications:

• Polarization: Left-Hand Circular or Right-Hand Circular
• Frequency Range: 865 - 956 MHz (Wide-band, worldwide compatible).
• Gain: 6.0 dBiL.
• Connector: Type 'N' female, Pig-tail.
• Dimensions: 10.2 in. L x 10.2 in. W x 1.32 in. D
• Environmental: IP54-rated (suitable for indoor/outdoor use).
• Design: Durable aluminum base with white plastic cover, ideal for ceiling/wall mounting.

The antenna is designed for high-sensitivity applications, offering 50% more uniform signal coverage than typical antennas. It is compatible with standard Zebra mounting brackets, ensuring easy installation with fixed readers like the FX7500.
