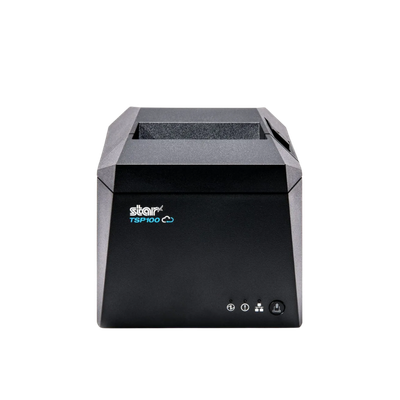

Star Micronics TSP143IVUE Thermal Receipt Printer
The Star Micronics TSP143IVUE, manufacturer part number 39473010, is a compact high-speed 3-inch thermal receipt printer with USB-C and Ethernet connectivity for modern point-of-sale, restaurant, retail and cloud-based POS systems. This gray TSP100IV model combines 250 mm/sec printing, an automatic cutter, CloudPRNT, Android Open Accessory support and an internal power supply in a compact countertop design.
Star TSP143IVUE 39473010 Product Identification
The TSP143IV family includes several different connectivity configurations. These identifiers distinguish this wired USB-C and Ethernet model from the newer TSP143IV X4 wireless configurations.
| Manufacturer | Star Micronics |
|---|---|
| Product Family | TSP100IV / TSP143IV Series |
| Model | TSP143IVUE GRY US |
| Manufacturer Part Number | 39473010 |
| UPC | 088047261103 |
| GTIN | 0088047261103 |
| Product Type | Desktop thermal POS receipt printer |
| Color | Gray |
| Connectivity | USB-C and Ethernet / LAN |
| Print Technology | Direct line thermal |
What Is the Star Micronics TSP143IVUE?
The Star TSP143IVUE is the fourth-generation TSP100 Series receipt printer designed for businesses that need fast, dependable countertop receipt printing with modern wired connectivity.
Its dual USB and Ethernet architecture makes it a strong choice for traditional POS systems, tablet-based POS installations, restaurant systems, retail checkout stations and cloud-connected applications. The printer also supports Star CloudPRNT technology for compatible cloud-based printing workflows.
The TSP143IV is approximately 20% smaller than its TSP143III predecessor, helping businesses conserve counter space while retaining the reliability and familiar paper-handling design associated with the TSP100 product family.
Key Features
250 mm/sec Printing
High-speed direct thermal printing helps keep checkout lines and restaurant transactions moving during busy periods.
USB-C + Ethernet
Connect directly through USB-C or install the printer on a wired Ethernet network for flexible POS deployment.
CloudPRNT Support
Star CloudPRNT technology allows compatible web and cloud applications to communicate with the printer for cloud-connected receipt printing.
Android AOA Support
Android Open Accessory support enables compatible Android devices to communicate with the printer while supporting power delivery in properly configured POS environments.
Technical Specifications
| Printing Method | Direct line thermal |
|---|---|
| Print Resolution | 203 dpi / 8 dots per mm |
| Maximum Print Speed | Up to 250 mm/sec |
| Standard Paper Width | 80 mm / approximately 3.15 inches |
| Optional Paper Width | 58 mm using the included paper guide |
| Maximum Print Width | 72 mm when using 80 mm paper; 50.8 mm when using 58 mm paper |
| Maximum Roll Diameter | Up to 83 mm |
| Paper Loading | Drop-in thermal paper loading |
| Auto-Cutter | Guillotine automatic cutter, partial cut |
| Connectivity | USB-C and Ethernet / LAN |
| Additional USB | USB Type-A connection for supported peripheral or device applications |
| Cloud Printing | Star CloudPRNT / CloudPRNT Next support depending on firmware and application |
| Android Support | Android Open Accessory / AOA support |
| Printer Emulation | StarPRNT / Star Graphics Mode |
| Dimensions | 140 x 123 x 169 mm / approximately 5.5 x 4.8 x 6.7 inches |
| Weight | Approximately 1.3 kg / 2.9 lb |
| Power Supply | Internal power supply |
| ENERGY STAR | ENERGY STAR approved |
| Standard Warranty | 2-year manufacturer warranty |
Best For
Retail POS
- Checkout counters
- Specialty retail
- Convenience stores
- Grocery environments
- Multi-location retail
Restaurants & Hospitality
- Restaurant POS
- Quick-service restaurants
- Cafes and coffee shops
- Bars and hospitality
- Counter-service operations
Tablet & Mobile POS
- Android POS systems
- iPad and tablet-based POS
- Compact checkout stations
- Modern mPOS installations
Cloud POS
- Cloud-connected POS applications
- Web-based ordering systems
- Remote receipt printing workflows
- Multi-location applications
USB-C and Ethernet Connectivity
This exact TSP143IVUE 39473010 configuration includes both USB-C and Ethernet connectivity, giving businesses two common ways to connect a receipt printer to a POS system.
USB-C
USB-C provides a direct wired connection for compatible POS terminals, computers and mobile-device configurations.
Ethernet / LAN
The built-in Ethernet interface allows the printer to connect to a wired local network. Network printing can be useful when multiple POS stations or cloud-connected applications need access to a centrally located receipt printer.
Star TSP143IVUE vs. TSP143IV X4
| TSP143IVUE 39473010 | USB-C and Ethernet / LAN connectivity with CloudPRNT and Android Open Accessory support. This is the exact configuration sold on this product page. |
|---|---|
| TSP143IV X4 | Newer TSP143IV configurations combine USB-C, Ethernet, Wi-Fi and Bluetooth in one printer. X4 models use different manufacturer part numbers. |
If your POS system requires Bluetooth or Wi-Fi, do not order the 39473010 based only on the TSP143IV family name. Confirm the exact interface requirements with your POS software provider or ShopPOSPortal before purchasing.
80 mm and 58 mm Receipt Paper
The TSP143IVUE is designed primarily for standard 80 mm thermal receipt paper. It can also print on 58 mm thermal paper when configured with the supplied paper guide.
| 80 mm Paper | Standard configuration with a maximum printable width of approximately 72 mm. |
|---|---|
| 58 mm Paper | Supported using the paper guide with a maximum printable width of approximately 50.8 mm. |
| Maximum Roll Diameter | Approximately 83 mm. |
Because this is a direct thermal receipt printer, no ink cartridges, toner cartridges or ribbons are required. The printer creates the receipt image directly on compatible thermal paper.
Fast Automatic Receipt Cutting
The TSP143IVUE includes a guillotine-style automatic cutter designed for partial cuts. Star rates the cutter for up to approximately 2 million cuts under specified operating conditions.
The print mechanism is rated at an MCBF of approximately 60 million lines and the thermal printhead is rated for approximately 100 km, helping make the TSP143IV suitable for demanding commercial checkout environments.
CloudPRNT and Cloud POS Printing
The TSP143IVUE supports Star Micronics CloudPRNT technology, allowing compatible cloud applications to communicate with the receipt printer without requiring a traditional locally installed POS application for every workflow.
Cloud printing capabilities depend on the POS software, application integration, network configuration, printer firmware and CloudPRNT implementation being used.
Android Open Accessory Support
Android Open Accessory, commonly called AOA, allows compatible Android devices to communicate directly with supported Star printers. This can simplify tablet-based POS installations where an Android tablet or terminal is used as the primary checkout device.
Device charging, communication and application support depend on the Android hardware, software and POS configuration being used.
What's Included
- Star Micronics TSP143IVUE thermal receipt printer
- Internal power supply
- Power cable
- USB cable
- Ethernet / LAN cable
- Paper width guide
- Rubber feet
- Safety instructions
- Easy setup documentation
Package contents can change by region, production revision or distribution channel. Confirm required accessories when they are critical to your installation.
POS Software and Device Compatibility
The Star TSP143IV platform supports a wide range of Windows, Android, iOS, macOS, Linux and cloud-based POS environments through Star drivers, SDKs and supported integrations.
However, having the correct physical connection does not automatically guarantee that a particular POS application supports the printer.
Need help confirming USB-C, Ethernet, Android, cloud POS, cash drawer or receipt-paper compatibility? Contact ShopPOSPortal or chat with a ShopPOSPortal hardware specialist before ordering.
Common Buying Mistakes to Avoid
Assuming It Has Bluetooth
The 39473010 model does not have built-in Bluetooth. Choose an appropriate TSP143IV X4 configuration if Bluetooth is required.
Assuming It Has Wi-Fi
This model includes Ethernet networking, not built-in Wi-Fi. Verify the exact model if wireless LAN is required.
Checking Only the Connector
A USB-C or Ethernet connection does not guarantee POS software compatibility. Confirm that your application supports this Star printer and interface.
Ordering the Wrong Paper
The printer uses direct thermal receipt paper. Standard paper width is 80 mm, with 58 mm supported through the paper guide.
Frequently Asked Questions
What is the Star Micronics TSP143IVUE?
The TSP143IVUE is a compact direct thermal POS receipt printer from Star Micronics' fourth-generation TSP100 Series. The 39473010 gray configuration includes USB-C and Ethernet connectivity, CloudPRNT support, Android Open Accessory support and an automatic cutter.
What is the manufacturer part number for this printer?
The manufacturer part number for this gray USB-C and Ethernet TSP143IVUE configuration is 39473010.
What is the UPC for Star Micronics 39473010?
The UPC is 088047261103. The GTIN-13 is 0088047261103.
Does the TSP143IVUE 39473010 have Bluetooth?
No. Manufacturer part number 39473010 does not include built-in Bluetooth. Bluetooth is available on specific TSP143IV X4 models.
Does the Star TSP143IVUE have Wi-Fi?
The 39473010 configuration does not include built-in Wi-Fi. It includes wired Ethernet networking and USB-C. Specific TSP143IV X4 models include WLAN.
Does the TSP143IVUE have Ethernet?
Yes. The 39473010 model includes an integrated Ethernet / LAN interface and an Ethernet cable.
Does the TSP143IVUE have USB-C?
Yes. The printer includes USB-C connectivity as part of its dual USB/LAN interface configuration.
How fast does the Star TSP143IVUE print?
The printer can print at speeds of up to approximately 250 mm per second depending on the application, receipt design and operating conditions.
What resolution does the TSP143IVUE use?
The printer has a 203 dpi thermal print resolution, equivalent to 8 dots per millimeter.
What size receipt paper does the TSP143IVUE use?
The standard paper width is 80 mm. The printer can also use 58 mm thermal receipt paper when configured with the supplied paper guide.
Does the TSP143IVUE need ink or toner?
No. It is a direct thermal receipt printer, so it uses compatible heat-sensitive thermal paper and does not require ink, toner or ribbons.
Does the TSP143IVUE have an automatic cutter?
Yes. It includes a guillotine-style automatic cutter configured for partial cuts.
Does the TSP143IVUE work with Android POS systems?
The printer supports Android Open Accessory technology and Star provides software tools for Android applications. Actual compatibility depends on the specific POS application, Android device and configuration.
Can the TSP143IVUE work with iPad POS systems?
The TSP143IV family can be integrated with supported iOS POS applications, but compatibility depends on the software, network architecture and connection method. Confirm your POS software supports the exact printer configuration before ordering.
Does the TSP143IVUE support cloud POS systems?
Yes. The printer supports Star CloudPRNT technology for compatible cloud-based applications. The POS or ordering platform must support the required Star integration.
Can I connect a cash drawer to the TSP143IVUE?
The printer includes a peripheral drive circuit designed for compatible POS peripherals such as cash drawers. Cash drawer compatibility depends on the drawer interface, cable and POS configuration.
What is the difference between TSP143IVUE and TSP143IV X4?
The TSP143IVUE 39473010 uses USB-C and Ethernet connectivity. TSP143IV X4 configurations combine USB-C, Ethernet, WLAN and Bluetooth. Always compare manufacturer part numbers because connectivity varies within the TSP143IV family.
Related POS Hardware & Resources
Bottom Line
The Star Micronics TSP143IVUE 39473010 is a compact commercial thermal receipt printer built for wired POS environments that need USB-C and Ethernet connectivity. With 250 mm/sec printing, 203 dpi resolution, 80 mm and 58 mm paper support, an automatic cutter, CloudPRNT, Android AOA support and an internal power supply, it is a strong choice for retail, restaurant, hospitality and cloud-connected POS installations.
If you need built-in Wi-Fi or Bluetooth instead, choose the appropriate TSP143IV X4 model rather than the 39473010 configuration.
