Zebra
Zebra, Ds2208-SR, USB Kit: Ds2208-Sr00007Zzww Scanner, Cba-U21-S07Zbr Shielded Usb Cable, Black
Zebra, Ds2208-SR, USB Kit: Ds2208-Sr00007Zzww Scanner, Cba-U21-S07Zbr Shielded Usb Cable, Black
SKU:DS2208-SR7U2100AZW
Zebra Part Number: DS2208-SR7U2100AZW

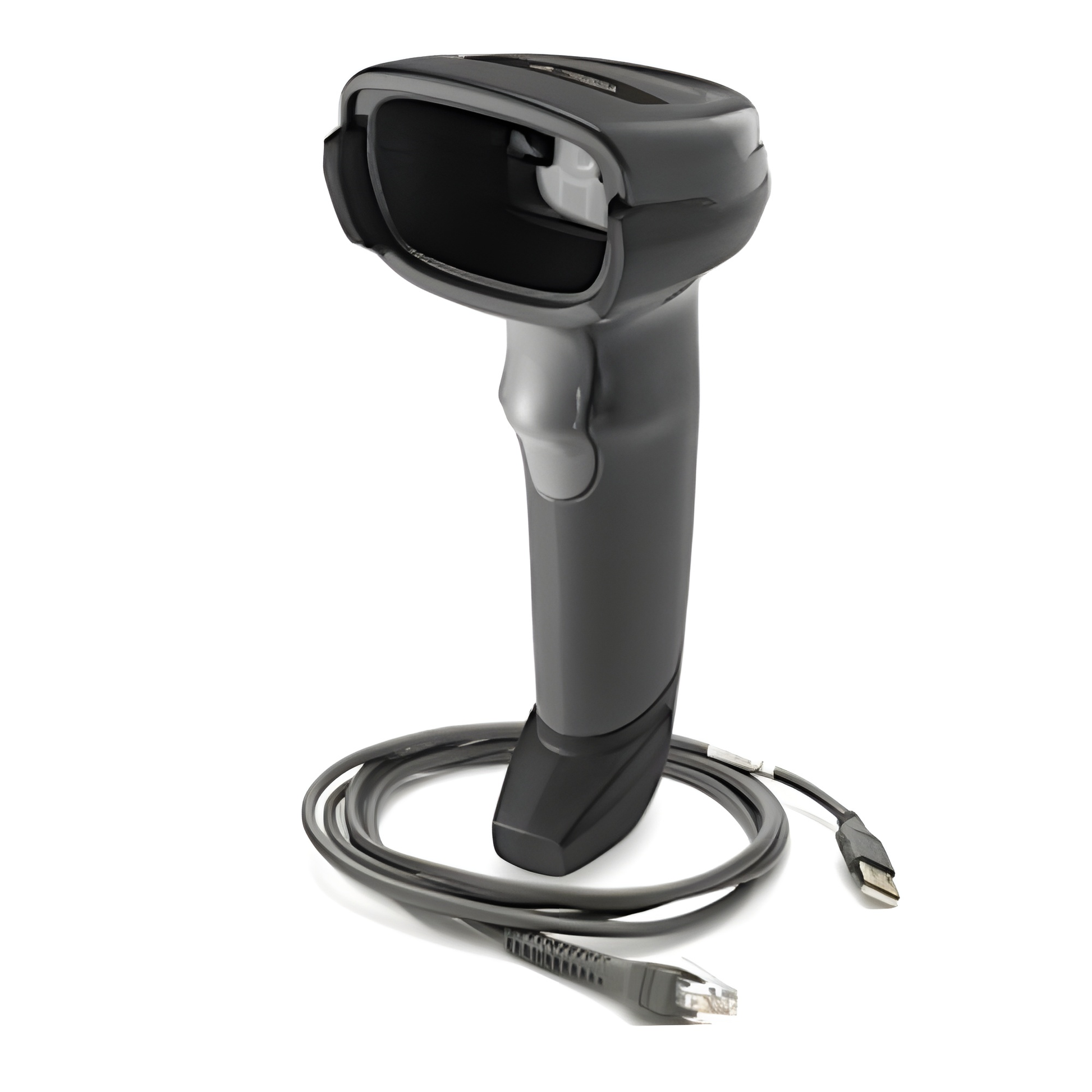

Zebra DS2208 Corded 1D/2D Barcode Scanner USB Kit – Black
The Zebra DS2208-SR7U2100AZW is a corded standard-range barcode scanner kit for retail checkout, point-of-sale, hospitality, light manufacturing, shipping, receiving, and general business scanning. It reads common 1D and 2D barcodes, including UPC, Code 128, QR Code, Data Matrix, PDF417, Aztec, and barcodes displayed on mobile-device screens.
This black USB kit includes the DS2208-SR corded scanner and a 7-foot shielded USB cable. The scanner receives power through the connected USB port, so a separate power supply is normally unnecessary.
Important: A scanner stand is not included with this configuration. If you need hands-free presentation scanning, consider the DS2208 USB kit with stand.
What Is Included
- Zebra DS2208-SR standard-range corded scanner in Twilight Black
- Zebra CBA-U21-S07ZBR shielded USB cable, approximately 7 feet
- Manufacturer documentation
Not included: Presentation stand or separate external power supply.
Key Features
- 1D and 2D barcode scanning: Replaces older 1D-only scanners while supporting traditional product barcodes and newer two-dimensional codes.
- Omnidirectional operation: Reads barcodes without requiring the operator to align the code with a single scan line.
- Mobile-screen scanning: Captures electronic coupons, loyalty cards, tickets, and other supported barcodes displayed on smartphones.
- PRZM intelligent imaging: Helps capture poorly printed, damaged, low-contrast, or difficult-to-read barcodes.
- USB connectivity: The included shielded USB cable carries both barcode data and power.
- Direct Decode Indicator: Illumination flashes on the barcode after a successful decode, supplementing the scanner’s LED and audible confirmation.
- Ready for everyday use: Default settings are designed to work with many standard USB point-of-sale and business applications.
- Zebra 123Scan support: Allows compatible settings, symbologies, firmware, and deployment configurations to be managed when customization is required.
Best For
- Retail point-of-sale checkout
- Grocery, convenience, liquor, and specialty stores
- Electronic coupon and loyalty-card scanning
- Hospitality check-in and ticketing
- Backroom shipping and receiving
- Product, component, and work-in-process tracking
- Businesses upgrading from a Zebra LS2208 or another 1D-only scanner
Technical Specifications
| Manufacturer | Zebra Technologies |
|---|---|
| Manufacturer Part Number | DS2208-SR7U2100AZW |
| Scanner Model | DS2208-SR |
| Scanner Type | Corded standard-range area imager |
| Supported Barcode Types | 1D and 2D barcodes |
| Interface | USB |
| Included Cable | CBA-U21-S07ZBR shielded USB cable, approximately 7 feet |
| Color | Twilight Black |
| Image Sensor | 640 × 480 pixels |
| Typical UPC Working Range | Approximately 0.5 to 14.5 inches for a 13 mil UPC barcode |
| Dimensions | 6.5 in. H × 2.6 in. W × 3.9 in. D |
| Weight | 5.7 oz. |
| Drop Resistance | Designed to withstand multiple 5-foot drops to concrete |
| Environmental Sealing | IP52 |
| Operating Temperature | 32°F to 122°F |
| Manufacturer Warranty | Five years, subject to Zebra’s warranty terms |
Compatibility and Ordering Notes
The DS2208 commonly operates as a USB barcode input device with compatible point-of-sale, inventory, shipping, and business software. Specialized applications may require configuration through Zebra 123Scan or software-specific settings.
Before ordering, confirm that your computer or POS terminal has an available USB port and that your application accepts barcode data from a USB scanner. Match the complete part number DS2208-SR7U2100AZW when replacing an existing device because similar DS2208 kits may include different interfaces, cables, colors, or stands.
Frequently Asked Questions
Does DS2208-SR7U2100AZW scan QR codes?
Yes. The DS2208 is a two-dimensional area imager that reads QR Code, Data Matrix, PDF417, Aztec, and many other 1D and 2D symbologies.
Can it scan barcodes from smartphone screens?
Yes. It is designed to scan supported barcodes displayed on mobile devices, making it suitable for electronic coupons, loyalty applications, and mobile ticketing.
Is this scanner wireless?
No. The DS2208 is a corded USB scanner. The Zebra DS2278 is the cordless model in the DS2200 Series.
Does this kit include a stand?
No. DS2208-SR7U2100AZW includes the scanner and shielded USB cable but does not include a stand. Choose DS2208-SR7U2100SGW if you need the USB kit with a stand.
Does it require a separate power supply?
For typical USB installations, the scanner receives power from the connected host device through the included USB cable. A separate power supply is normally unnecessary.
Is it a replacement for the Zebra LS2208?
It is a strong upgrade for many LS2208 installations because it adds 2D and mobile-screen scanning. Confirm your software, interface, and configuration requirements before replacing existing equipment.
Bottom Line
Choose the Zebra DS2208-SR7U2100AZW when you need an affordable, dependable black corded scanner that reads both traditional 1D barcodes and modern 2D codes through a USB connection. This specific kit includes the scanner and shielded USB cable but does not include a stand.
