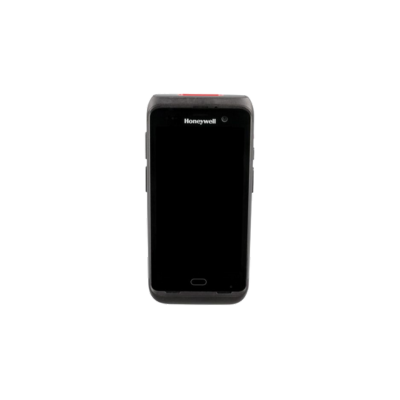

Honeywell CT40 XP Mobile Computer, 5-Inch, Wi-Fi, 4GB/32GB, N6803FR Imager, Disinfectant-Ready (CT40P-L0N-28R11DF)
Honeywell CT40 XP Mobile Computer, 5-Inch, Wi-Fi, 4GB/32GB, N6803FR Imager, Disinfectant-Ready (CT40P-L0N-28R11DF)
SKU:CT40P-L0N-28R11DF
The Honeywell CT40 XP is an Android enterprise mobile computer that Honeywell positions for store associates and mobile workers, with daily workflows from inventory lookup and in-store merchandising to last-mile delivery. Part number CT40P-L0N-28R11DF is the Wi-Fi configuration with 4 GB RAM, 32 GB flash, an N6803FR imager, a 5-inch Full HD display and a disinfectant-ready housing.
Key features
- Built on Honeywell's Mobility Edge platform; Honeywell states the CT40 XP holds a DISA STIG (Security Technical Implementation Guide) designation
- 5.0-inch 1920 x 1080 display with multi-touch capacitive Corning Gorilla Glass 5
- 13 MP autofocus rear camera and 8 MP front-facing camera
- Warm swap: the battery can be replaced without powering off the operating system
- Second BLE beacon for Honeywell's Device Finder, which helps locate a misplaced unit even after its battery has drained
- Disinfectant-ready housing that Honeywell says can be cleaned regularly with a wide variety of cleaning solutions
- IP67 and IP65 sealing, with multiple 6 ft (1.8 m) drops to concrete when fitted with the hard protective boot
Specifications
| Part number | CT40P-L0N-28R11DF |
|---|---|
| Configuration | Wi-Fi (WLAN), 4 GB/32 GB, N6803FR imager, disinfectant-ready housing |
| Operating system | Android; Honeywell guarantees each Android version from 9.1 to at least Android 12, with committed support for Android 13 pending feasibility |
| Processor | 2.2 GHz Qualcomm Snapdragon 660 octa-core |
| Memory | 4 GB DDR4x RAM, 32 GB flash; microSD up to 512 GB |
| Display | 5.0 in. (12.7 cm), 1920 x 1080, LED backlight, Corning Gorilla Glass 5 |
| Imager | N6803FR; reads 1D and 2D barcodes |
| Cameras | 13 MP color with autofocus (rear); 8 MP front-facing |
| WLAN | IEEE 802.11 a/b/g/n/ac, 2x2 MIMO; 802.11 d/e/h/i/k/r/u/w |
| Bluetooth and NFC | Bluetooth with a second BLE radio; integrated NFC |
| Battery | Li-Ion, 3.85 V, 4,020 mAh smart battery with integrated diagnostics; warm swap |
| Audio and I/O | 3.5 mm audio jack (Wi-Fi version), speaker, push-to-talk, VoIP ready; USB Type-C and custom I/O connector |
| Sensors | Ambient light, proximity, accelerometer, gyroscope |
| Dimensions | 6.4 x 3.0 x 0.7 in (162 x 77 x 18.2 mm) |
| Weight | 10.1 oz (289 g) with battery |
| Sealing | IP67 and IP65 |
| Drop and tumble | Multiple 4 ft (1.2 m) drops to concrete from 14°F to 122°F; multiple 6 ft (1.8 m) drops per MIL-STD-810G with hard protective boot; 1,000 tumbles at 1.6 ft (0.5 m) |
| Operating temperature | -4°F to 122°F (-20°C to 50°C) |
Typical applications
- Inventory lookup and in-store merchandising
- Last-mile delivery and logistics
- Push-to-talk and VoIP communication with supported third-party apps
Compatibility
Honeywell provides SDKs for Android and cites integration with Honeywell applications and third-party software such as MDM, push-to-talk and VoIP apps.
Frequently asked questions
Is the CT40XP part number CT40P-L0N-28R11DF a Wi-Fi or cellular model?
It is listed as the Wi-Fi (WLAN) configuration, with 802.11 a/b/g/n/ac Wi-Fi, Bluetooth and NFC. Honeywell offers WWAN radios on other CT40 XP configurations.
What does disinfectant-ready mean on the CT40 XP?
Honeywell offers select CT40 XP models with disinfectant-ready housings that can be cleaned regularly with a wide variety of cleaning solutions without damaging the device. This part number is listed with the disinfectant-ready housing.
Can the battery be swapped without shutting the device down?
Yes. The CT40 XP supports warm swap, so users can replace the 4,020 mAh battery without powering off the operating system.
Which Android versions does the Honeywell CT40 XP support?
Honeywell's CT40 XP data sheet guarantees each Android version from 9.1 to at least Android 12, with committed support for Android 13 pending feasibility. Check the installed version if your software requires a specific release.
How rugged is the CT40 XP?
Honeywell specifies IP67 and IP65 sealing, multiple 4 ft (1.2 m) drops to concrete from 14°F to 122°F, multiple 6 ft (1.8 m) drops per MIL-STD-810G with the hard protective boot, and 1,000 tumbles at 1.6 ft (0.5 m).
